Onset 120 Comp 2019

Onset 120 Comp 2019

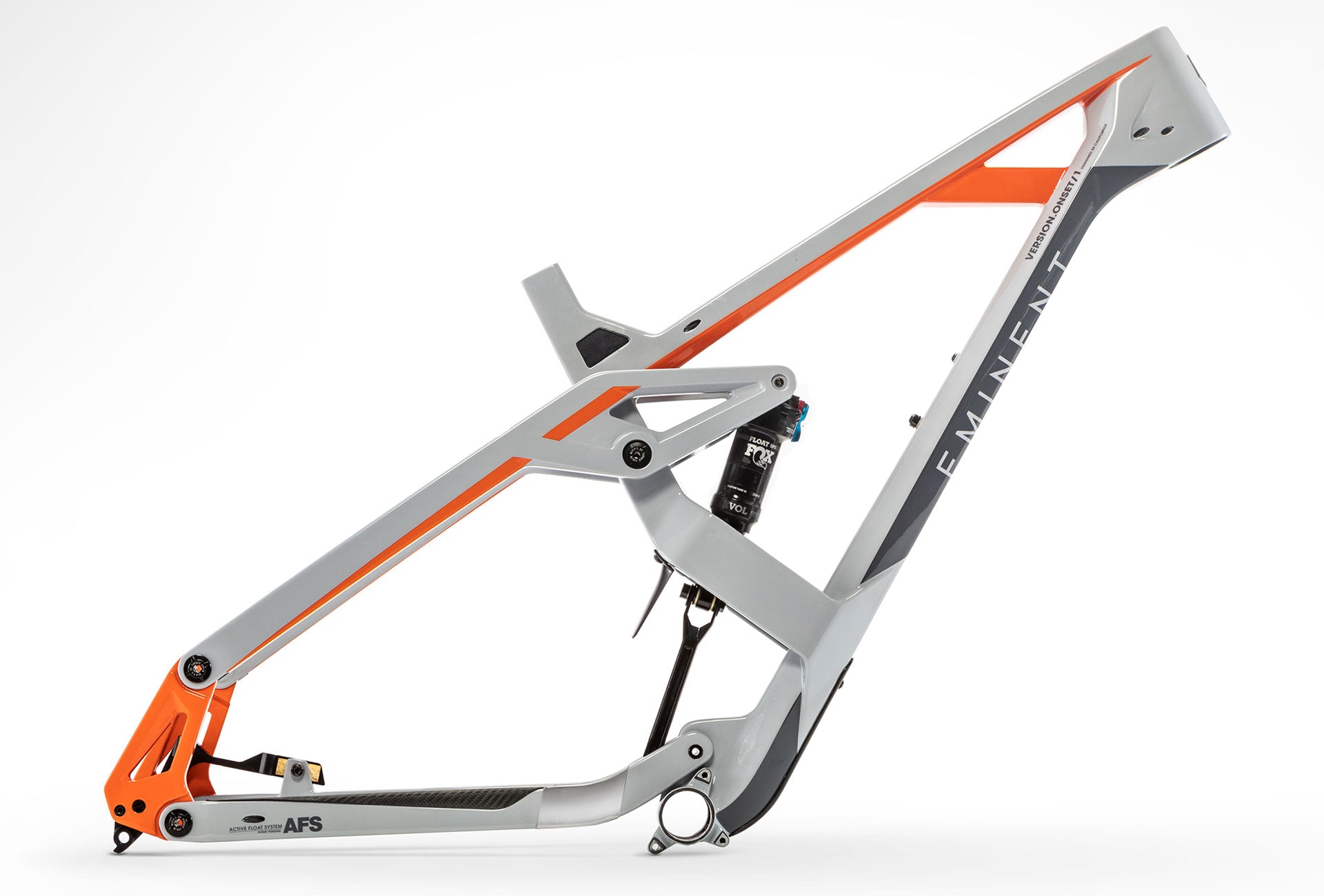

Onset 120R/130F Comp Mountain Bike Frame Set Gray-Orange-Gloss

$2,899.00

Onset framesets are built with AFS Suspension technology and perform better than anything on the trail.
Includes: Fox DPS Performance 190 x 40 Rear Shock, ST Link, Rear Axle, Seat Binder, and Owner's Manual

Frame Color

Onset 120 Comp 2019 Frame Specifications

FRAME MATERIAL UNIDIRECTIONAL CARBON FIBER
BB TYPE PRESSFIT 92
HEADSET TYPE ZS 44/ZS 56 REMOVABLE
REAR AXLE SPACING BOOST 148MM
SEAT POST DIA 30.9MM
SHOCK LENGTH 190x45MM
CHAIN GUIDE MOUNTING ISCG05

Onset 120 Comp 2019 Frameset Geometry Chart

S M L
A TOP TUBE LENGTH 568MM 597MM 627MM
B REACH 416MM 441MM 467MM
C HEAD TUBE LENGTH 100MM 110MM 120MM
D HEAD TUBE ANGLE 66.8 66.8 66.8
E SEAT TUBE LENGTH 432MM 471MM 471MM
F SEAT TUBE ANGLE 76 76 76
G BOTTOM BRACKET HEIGHT 330MM 330MM 330MM
H STACK 617MM 626MM 635MM
I WHEEL BASE 1150MM 1179MM 1209MM
J CHAIN STAY 442MM 442MM 442MM
K STAND OVER 731MM 731MM 731MM
L FORK AXLE TO CROWN(130MM) 537MM 537MM 537MM
M FORK OFFSET 44MM 44MM 44MM

Onset 120 Comp 2019 Fit Chart

S
4'11"[152CM] - 5'7"[173CM]
M
5'7"[173CM] - 5'11"[183CM]
L
5'11"[183CM] - 6'4"[193CM]
