-40%

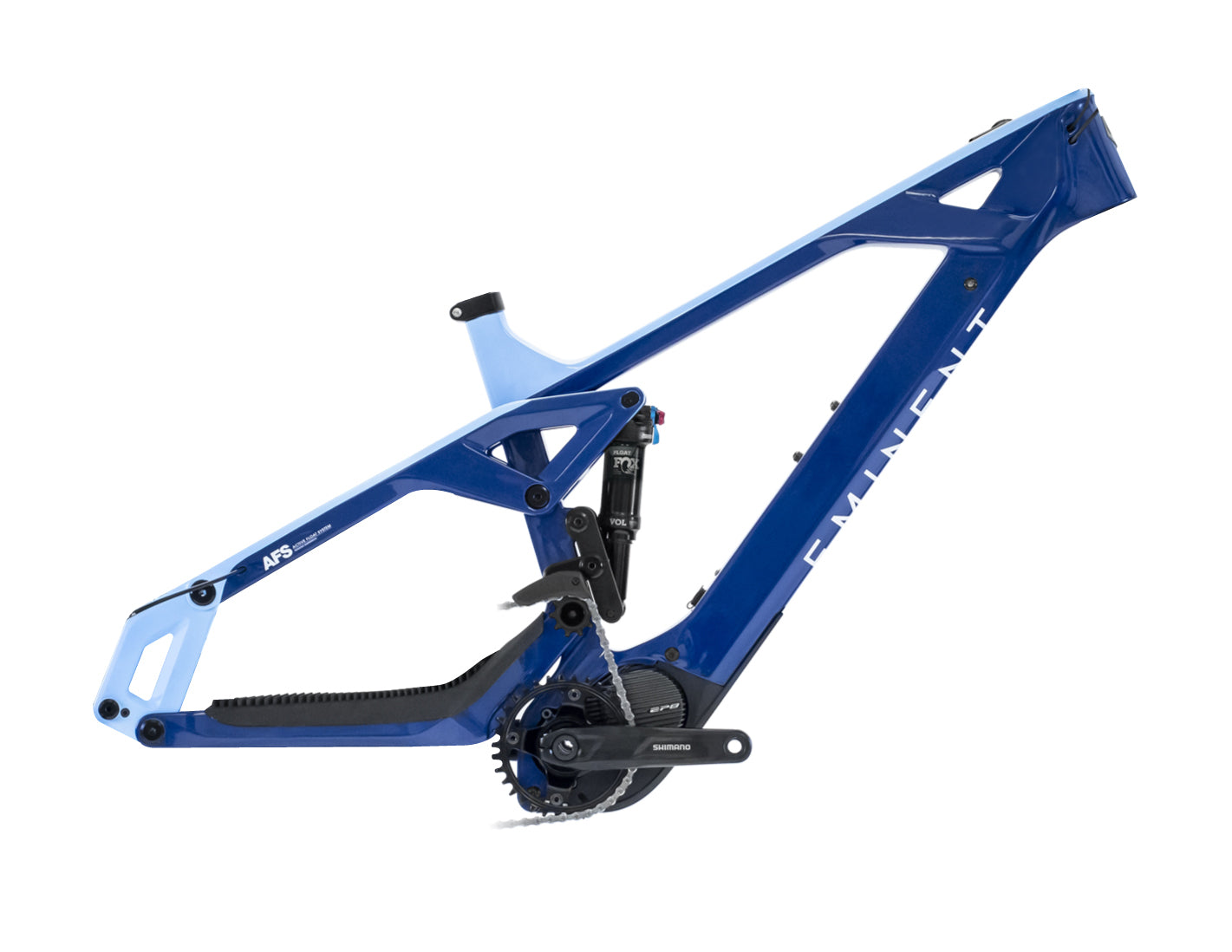

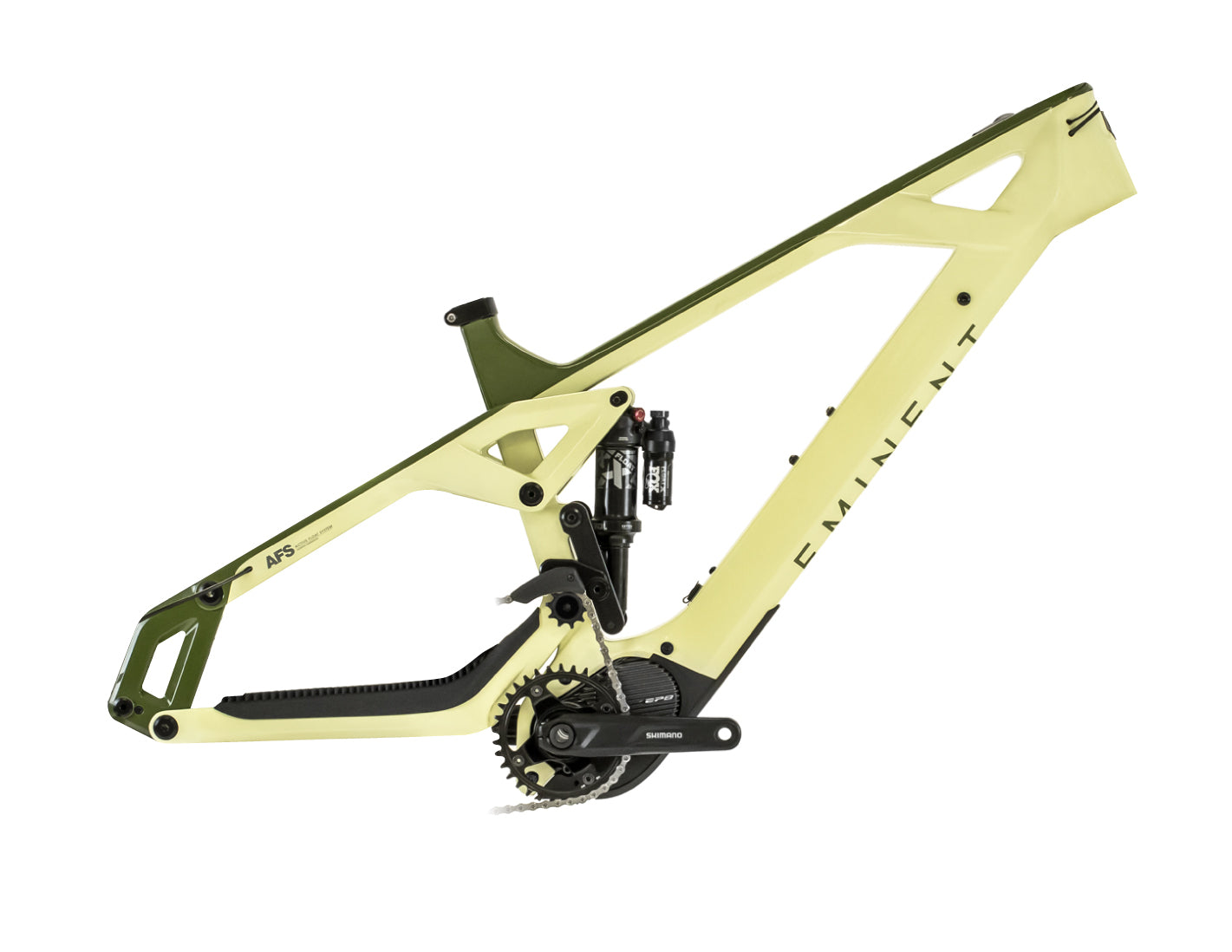

Drive MT Frame

170mm Front | 160mm Rear | 29 wheels

  • Eminent AFS High Pivot Suspension
  • Shimano EP8 Motor + Custom 504W LI Battery
  • Wiring + electronics for Shimano EP8 system
  • Deore 6100 crank w/34T chainring
$7,099.00 $4,139.40
STARTING AT $209.28/MO (14.99% APR), CLICK BELOW FOR CALCULATOR AND/OR LOAN APPLICATION TO COMPLETE YOUR FINANCED PURCHASE, OTHERWISE ADD YOUR PRODUCT TO THE CART AND PROCEED TO CHECK OUT. Loan Calculator/Application for Payment.
I agree with terms and conditions

FRAMEEminent Drive (160mm)
MOTORShimano EP8
WIRINGWiring and electronics for Shimano EP8 system
CRANKSDeore 6100 - Front Crank w/34T chainring

*Specifications subject to change


  MLXL
ATOP TUBE LENGTH599MM634MM666MM
BREACH446MM476MM506MM
CHEAD TUBE LENGTH110MM120MM130MM
D1HEAD TUBE ANGLE (Steep)646464
D2HEAD TUBE ANGLE (Slack)63.563.563.5
ESEAT TUBE LENGTH430MM450MM450MM
F1SEAT TUBE ANGLE (Steep)76.276.276.2
FSEAT TUBE ANGLE (Slack)767676
G1BOTTOM BRACKET HEIGHT (Steep)343MM343MM343MM
G2BOTTOM BRACKET HEIGHT (Slack)336MM336M336MM
HSTACK634MM644MM653MM
IWHEEL BASE1227MM1261MM1296MM
JCHAIN STAY440MM440MM440MM
KSTAND OVER726MM726MM726MM
LFORK AXLE TO CROWN577MM577MM577MM
MFORK OFFSET44MM44MM44MM
Frame MaterialUnidirectional Carbon Fiber
Headset TypeZS 44/ZS 56 removable
Rear Axle SpacingSuper Boost 157mm
Seat Post Dia34.9mm
Shock Length230x60mm
Chain Guide MountingIntegrated Top Guide
Maximum Tire Clearance2.6"
Rotor Size Compatibility203mm
Motor MountShimano EP8
Max. Seat Post InsertionM: 288mm, L & XL: 308mm
