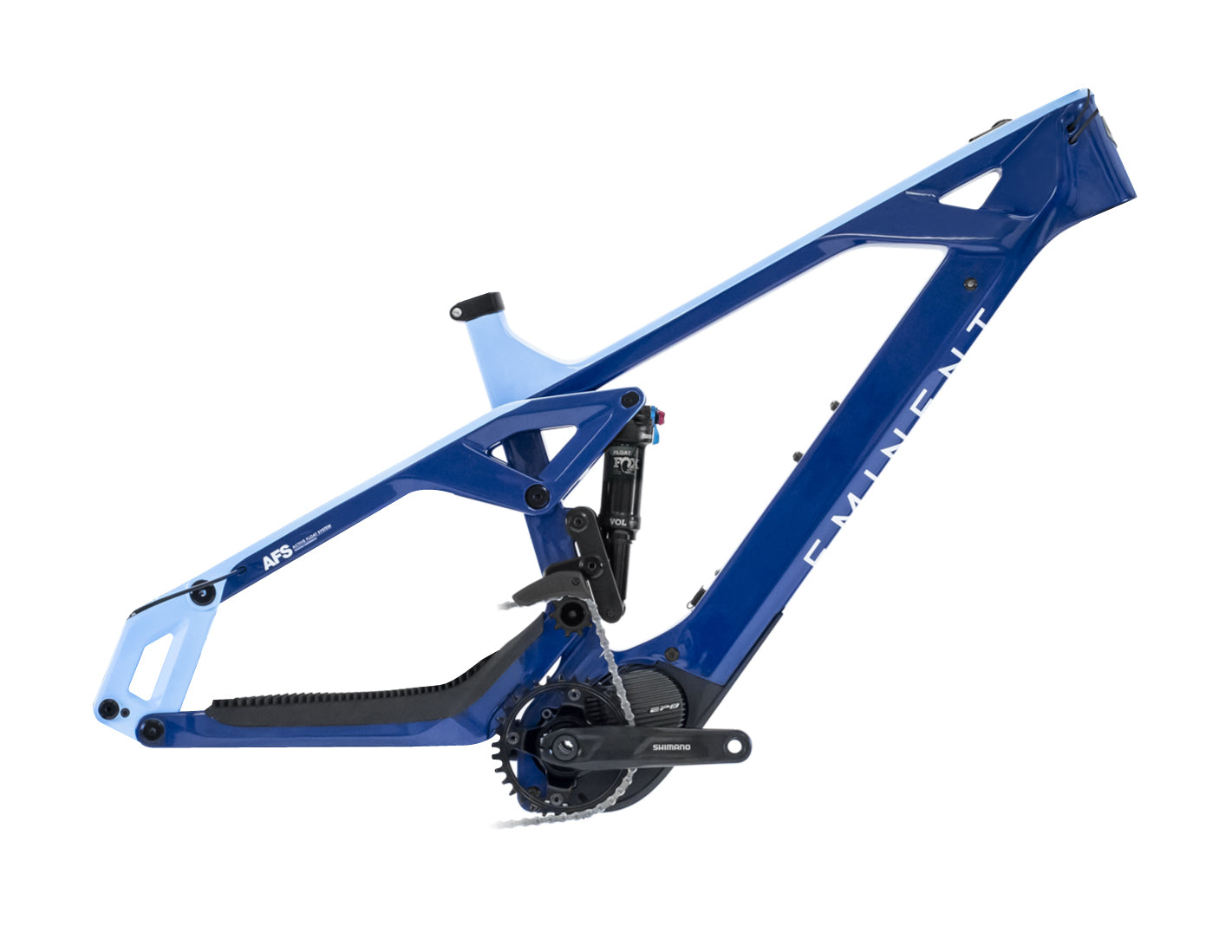

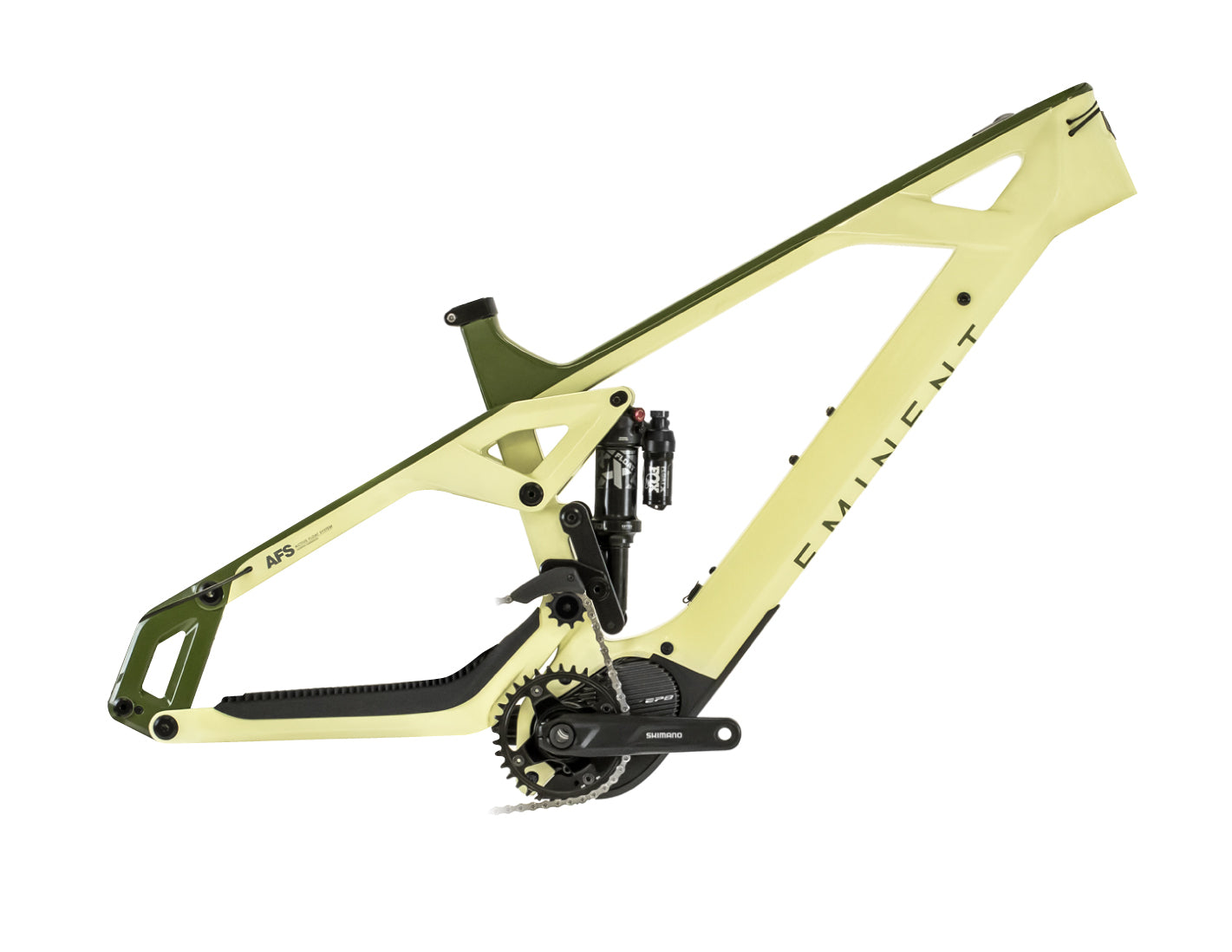

Drive LT Frame
150mm Front | 140mm Rear | 29 wheels
- Eminent AFS High Pivot Suspension
- Shimano EP8 Motor + Custom 504W LI Battery
- Wiring + electronics for Shimano EP8 system
- Deore 6100 crank w/34T chainring
$6,999.00
$4,079.40
STARTING AT $206.90/MO (14.99% APR), CLICK BELOW FOR CALCULATOR AND/OR LOAN APPLICATION TO COMPLETE YOUR FINANCED PURCHASE, OTHERWISE ADD YOUR PRODUCT TO THE CART AND PROCEED TO CHECK OUT. Loan Calculator/Application for Payment.
FRAME | Eminent Drive (140mm) |
MOTOR & BATTERY | Shimano EP8 & 504W Battery w/charger |
WIRING | Wiring and electronics for Shimano EP8 system |
CRANKS | Deore 6100 - Front Crank w/34T chainring |
*Specifications subject to change
M | L | XL | ||
A | TOP TUBE LENGTH | 599MM | 632MM | 664MM |
B | REACH | 455MM | 485MM | 515MM |
C | HEAD TUBE LENGTH | 110MM | 120MM | 130MM |
D1 | HEAD TUBE ANGLE (steep) | 65 | 65 | 65 |
D2 | HEAD TUBE ANGLE (slack) | 64.5 | 64.5 | 64.5 |
E | SEAT TUBE LENGTH | 430MM | 450MM | 450MM |
F1 | SEAT TUBE ANGLE (steep) | 77 | 77 | 77 |
F2 | SEAT TUBE ANGLE (slack) | 76.5 | 76.5 | 76.5 |
G1 | BOTTOM BRACKET HEIGHT (steep) | 337MM | 337MM | 337MM |
G2 | BOTTOM BRACKET HEIGHT (slack) | 330MM | 330M | 330M |
H | STACK | 628MM | 639MM | 646MM |
I | WHEEL BASE | 1218MM | 1253MM | 1287MM |
J | CHAIN STAY | 440MM | 440MM | 440MM |
K | STANDOVER | 710MM | 710MM | 710MM |
L | FORK AXLE TO CROWN | 557MM | 557MM | 557MM |
M | FORK OFFSET | 44MM | 44MM | 44MM |
Frame Material | Unidirectional Carbon Fiber |
Headset Type | ZS 44/ZS 56 removable |
Rear Axle Spacing | Super Boost 157mm |
Seat Post Dia | 34.9mm |
Shock Length | 210mm x 55mm |
Chain Guide Mount | Integrated Top Guide |
Maximum Tire Clearance | 2.6" |
Rotor Size Compatibility | 203mm |
Motor Mount | Shimano EP8 |
Max. Seat Post Insertion | M: 288mm, L & XL: 308mm |
