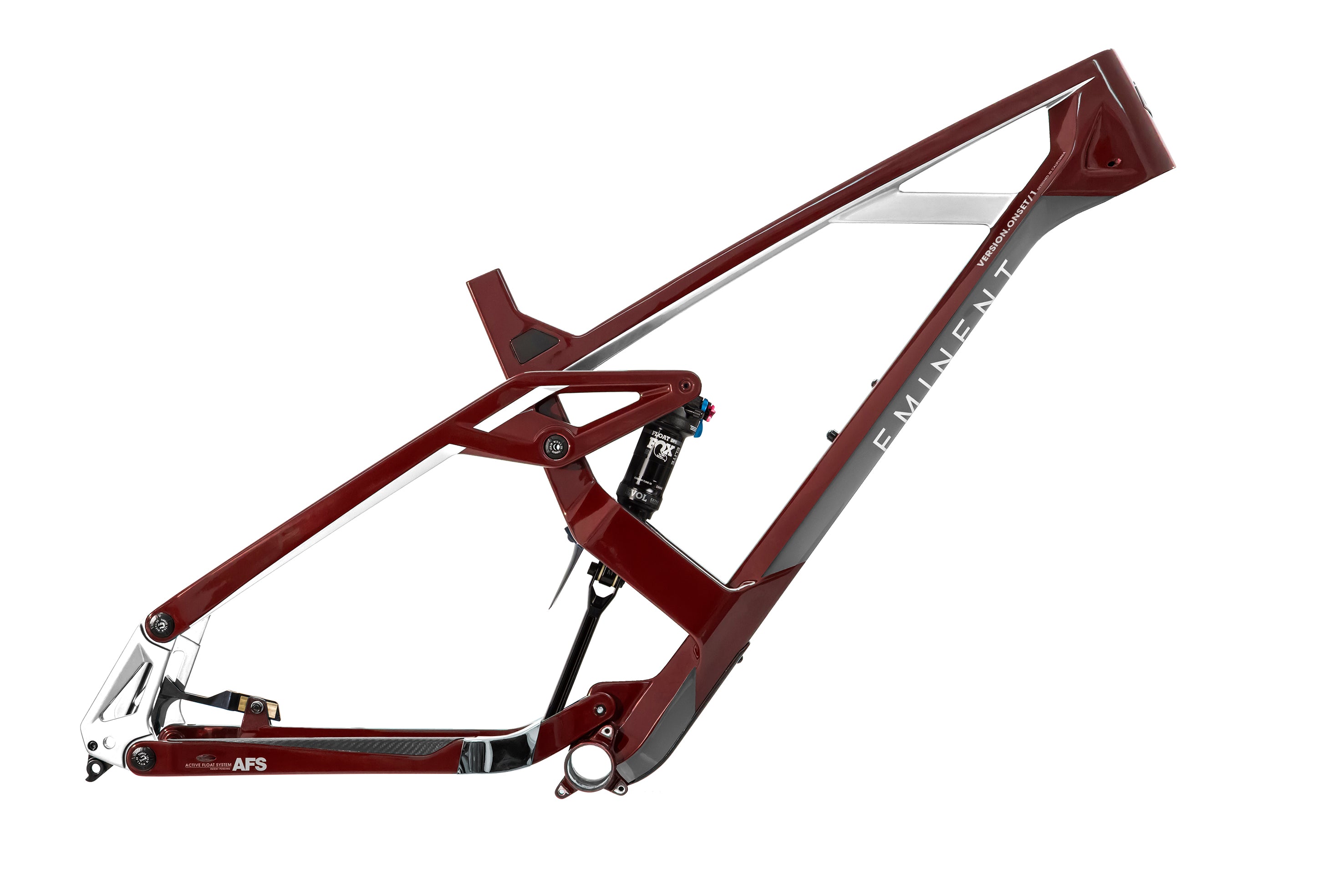

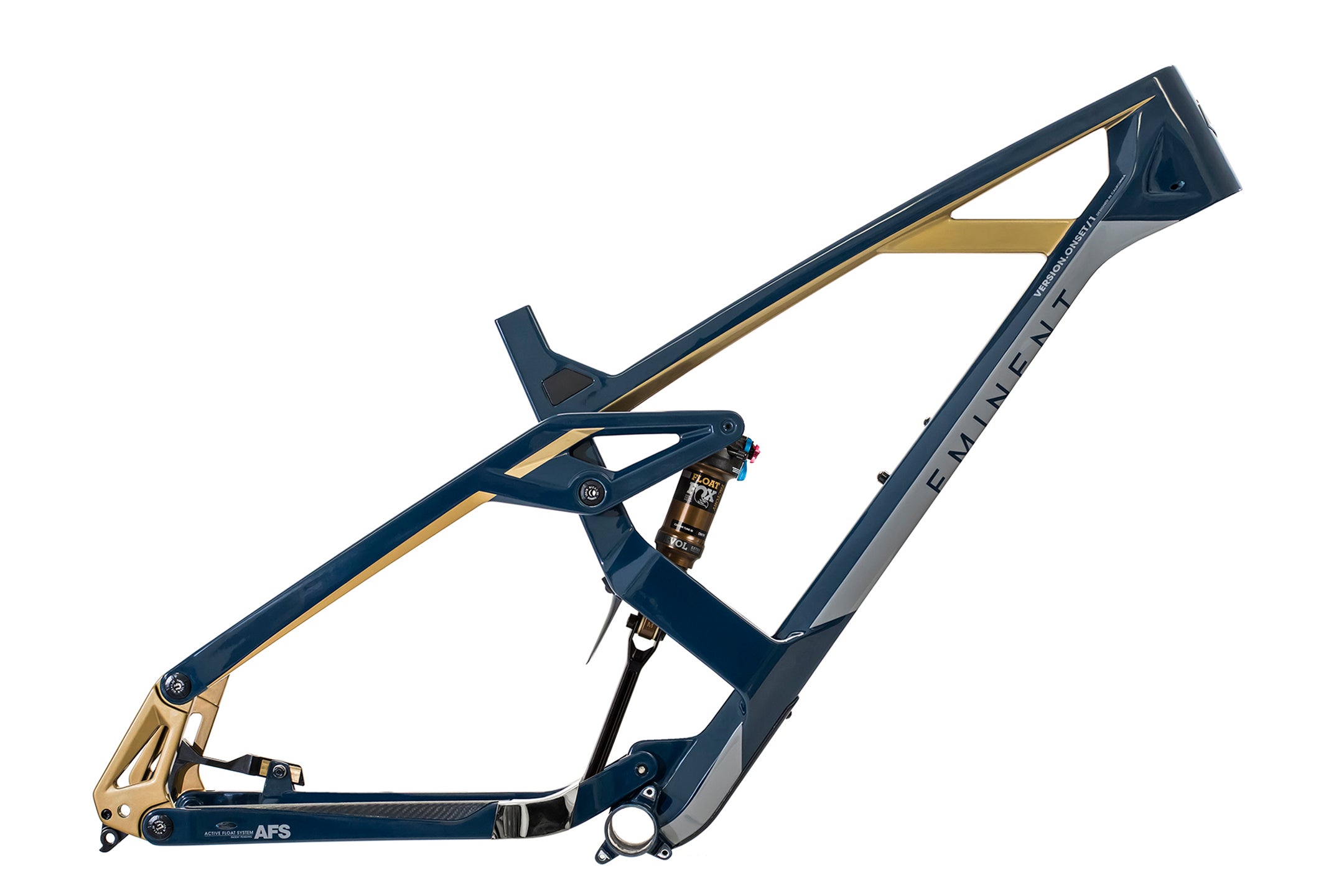

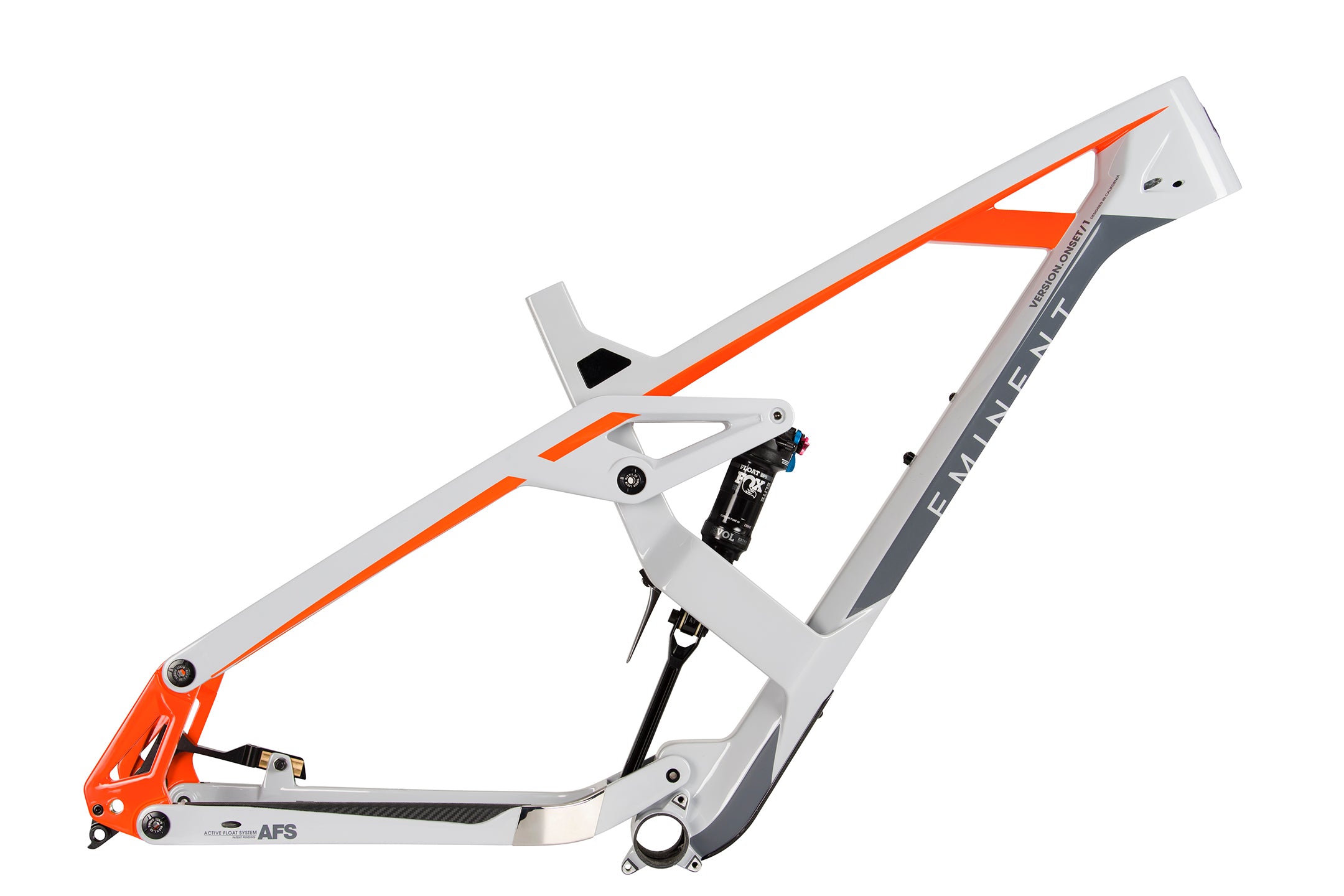

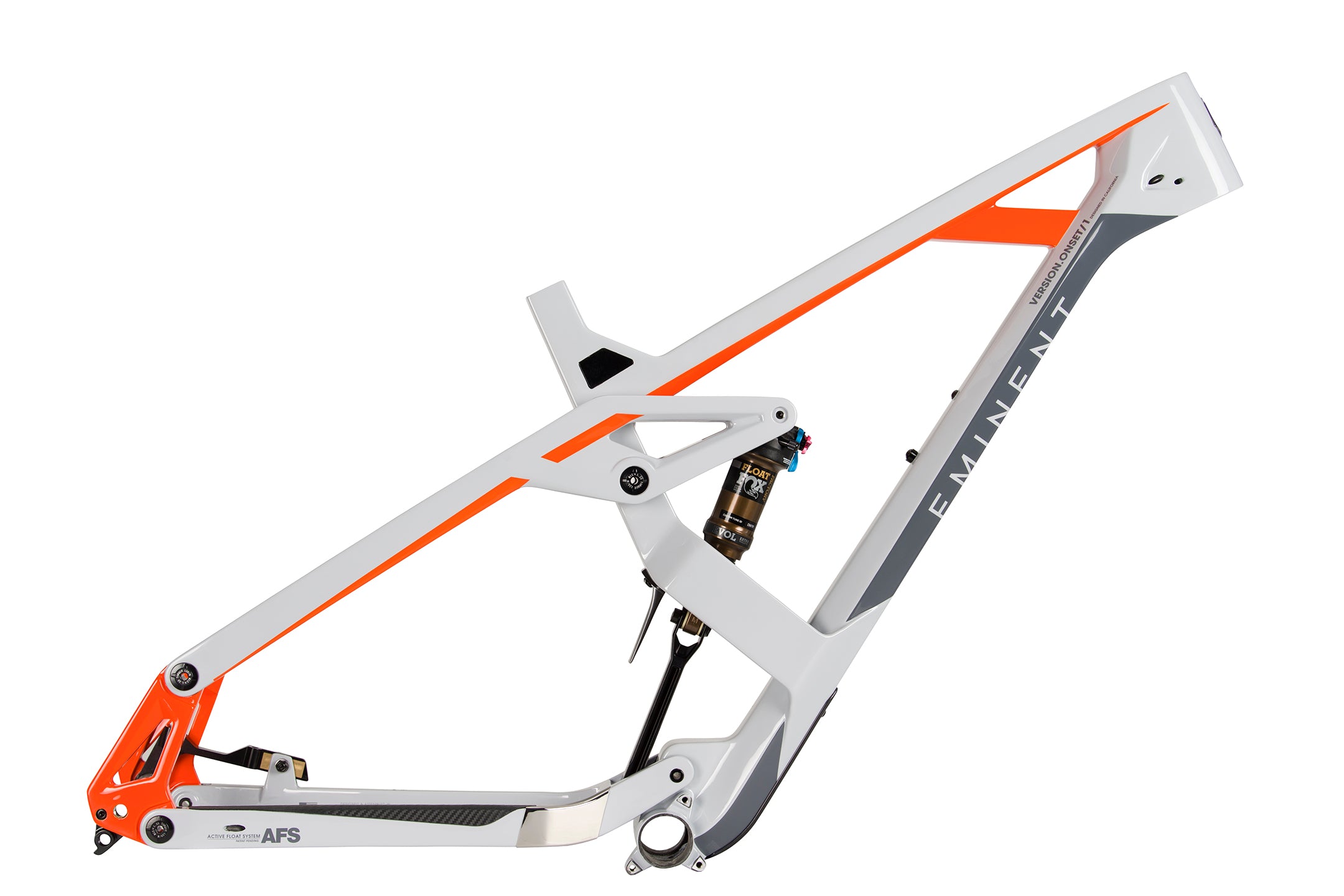

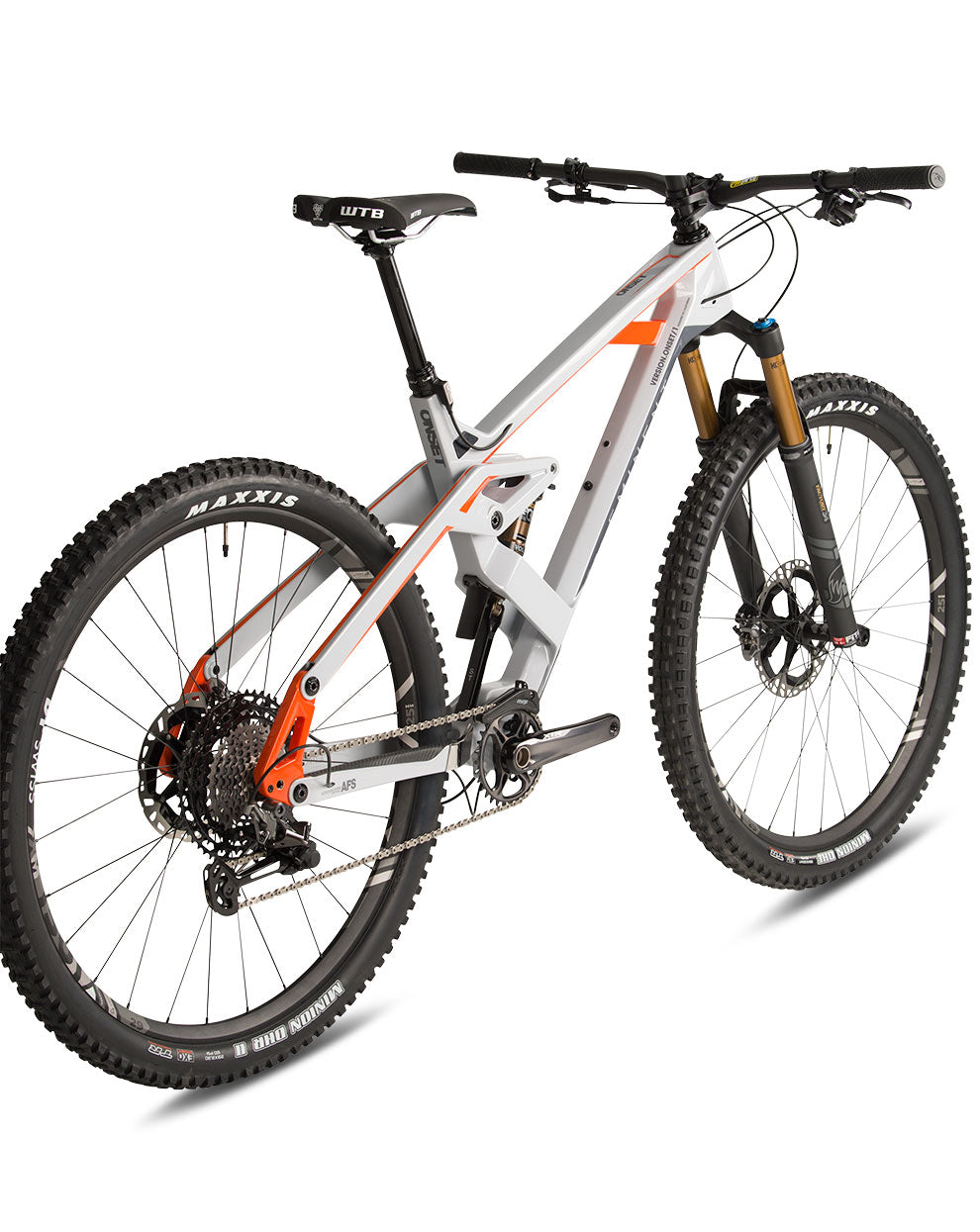

Onset ST 29 Frame
AFS frames provide zero compromise traction in all scenarios: pedalling, decending and brake. Eminent utilizes top shelf unidirectional carbon fiber to ensure the highest strength to weigh ratio. Additionally features include internally guided cable ports, integrated down tube protector, and angular contact bearings throughout to ensure class leading lateral stiffness.
Includes: 190 x 45 Fox Rear Shock, Fox Fork, ST Link, Rear Axle, Seat Binder, and Owner's Manual
Frame Material | Unidirectional Carbon Fiber |
BB type | Pressfit 92 |
Headset Type | ZS 44/ZS 56 removable |
Rear Axle Spacing | Boost 148mm |
Seat Post Dia | 30.9mm |
Shock Length | 190x45mm |
Chain Guide Mounting | ISCG05 |
*Specifications subject to change
S | M | L | XL | ||
A | TOP TUBE LENGTH | 568MM | 597MM | 627MM | 650MM |
B | REACH | 416MM | 441MM | 467MM | 500mm |
C | HEAD TUBE LENGTH | 100MM | 110MM | 120MM | 130MM |
D | HEAD TUBE ANGLE | 66.8 | 66.8 | 66.8 | 66.8 |
E | SEAT TUBE LENGTH | 432MM | 451MM | 471MM | 471MM |
F | SEAT TUBE ANGLE | 76 | 76 | 76 | 77 |
G | BOTTOM BRACKET HEIGHT | 330MM | 330MM | 330MM | 330MM |
H | STACK | 617MM | 626MM | 635MM | 644MM |
I | WHEEL BASE | 1150MM | 1179MM | 1209MM | 1246MM |
J | CHAIN STAY | 442MM | 442MM | 442MM | 442MM |
K | STAND OVER | 731MM | 731MM | 731MM | 731MM |
L | FORK AXLE TO CROWN | 537MM | 537MM | 537MM | 537MM |
M | FORK OFFSET | 44MM | 44MM | 44MM | 44MM |
Integrated Seat Clamp
Keeps the look tidy and also provides better minimum clearance assurance
Carbon Downtube Protector
Carbon adds structure to ensure big hits don’t damage your frame.
Unidirectional Carbon Fiber
Proprietary blend of carbon to create a bike capable of meeting the rigors of enduro riding.

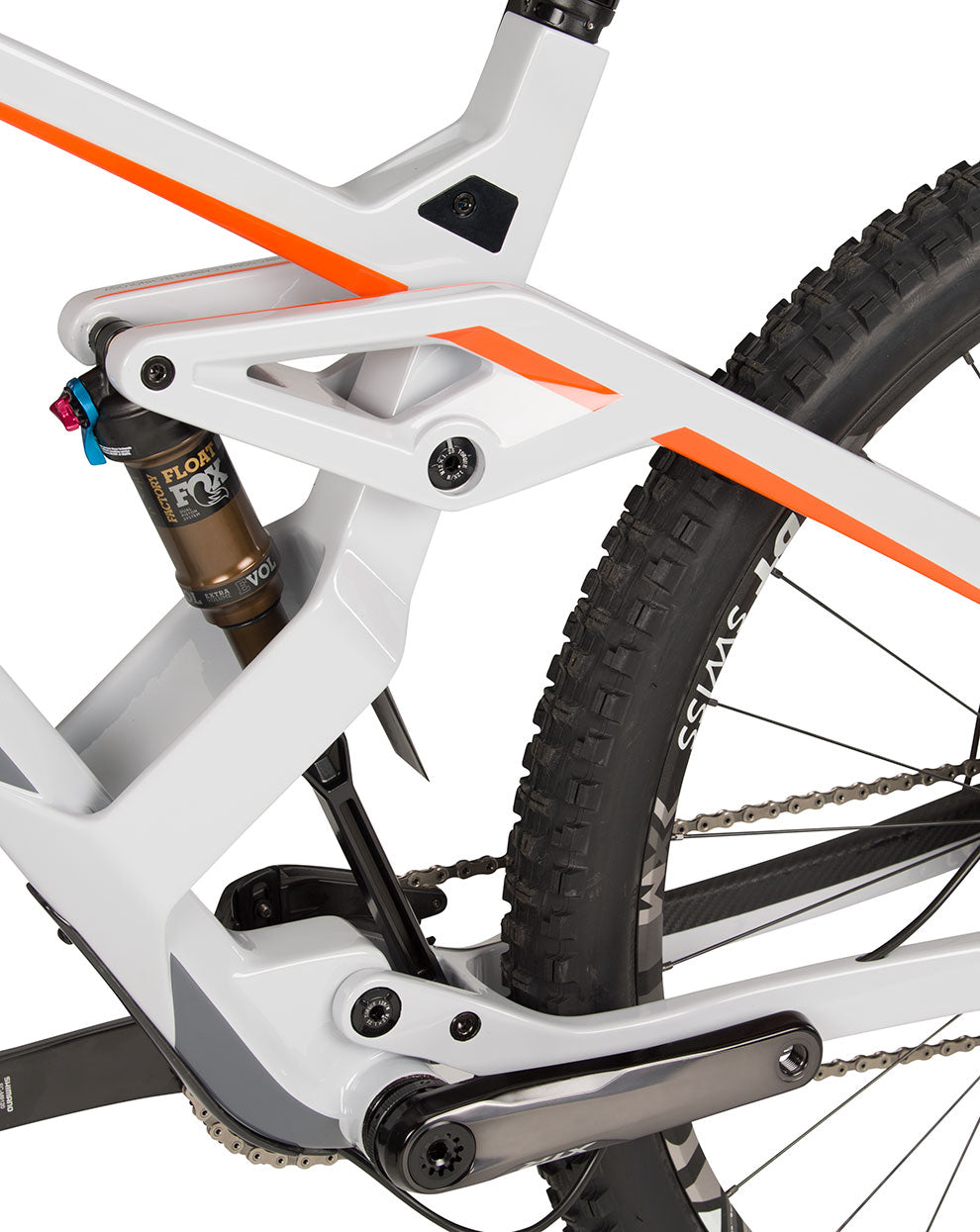

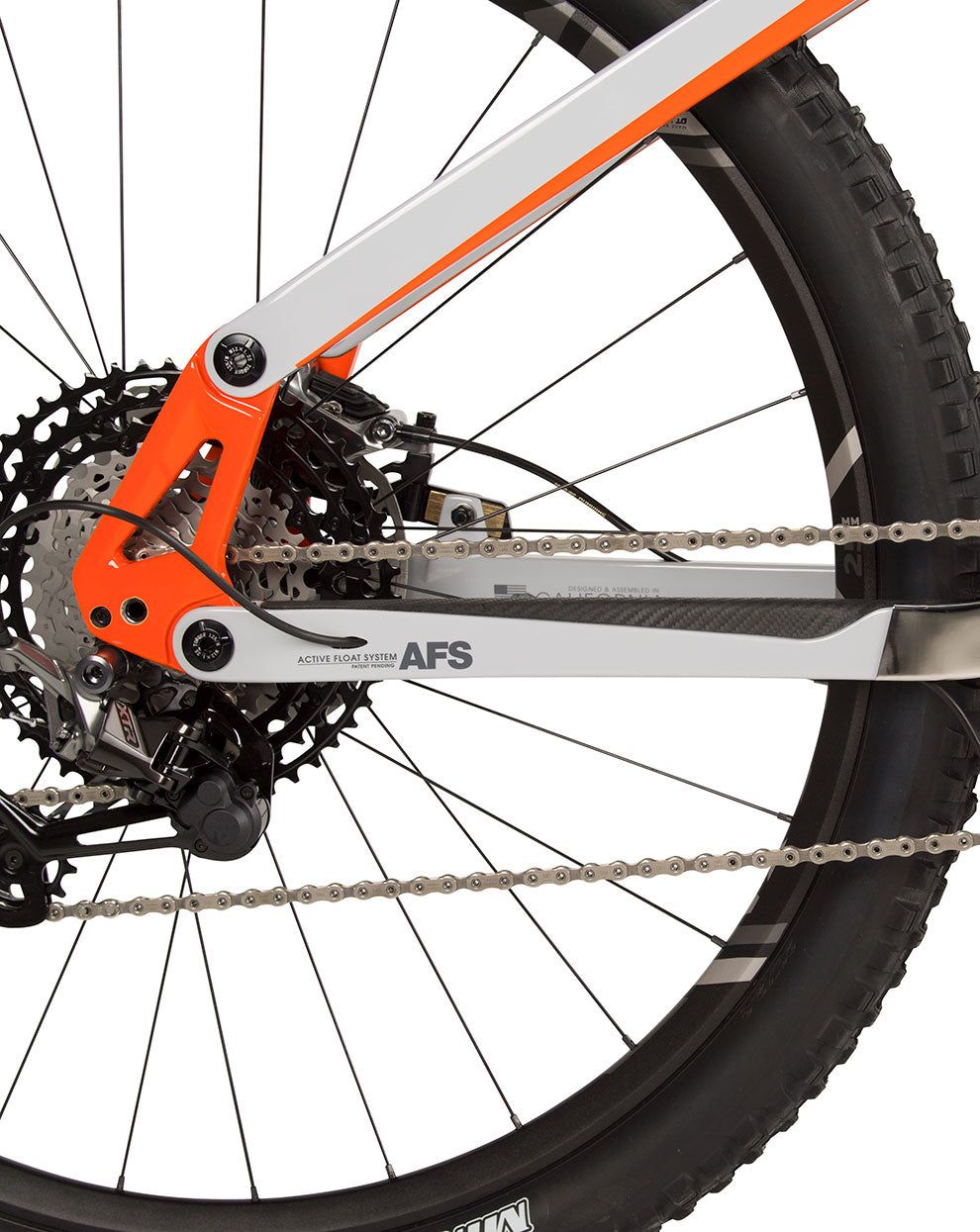

AFS Suspension
Floating brake, floating shock, and long rocker for quick response in all conditions.
Angular Contact Bearings
Bearings capable of side and vertical loading improve lateral stiffness and bearing durability.

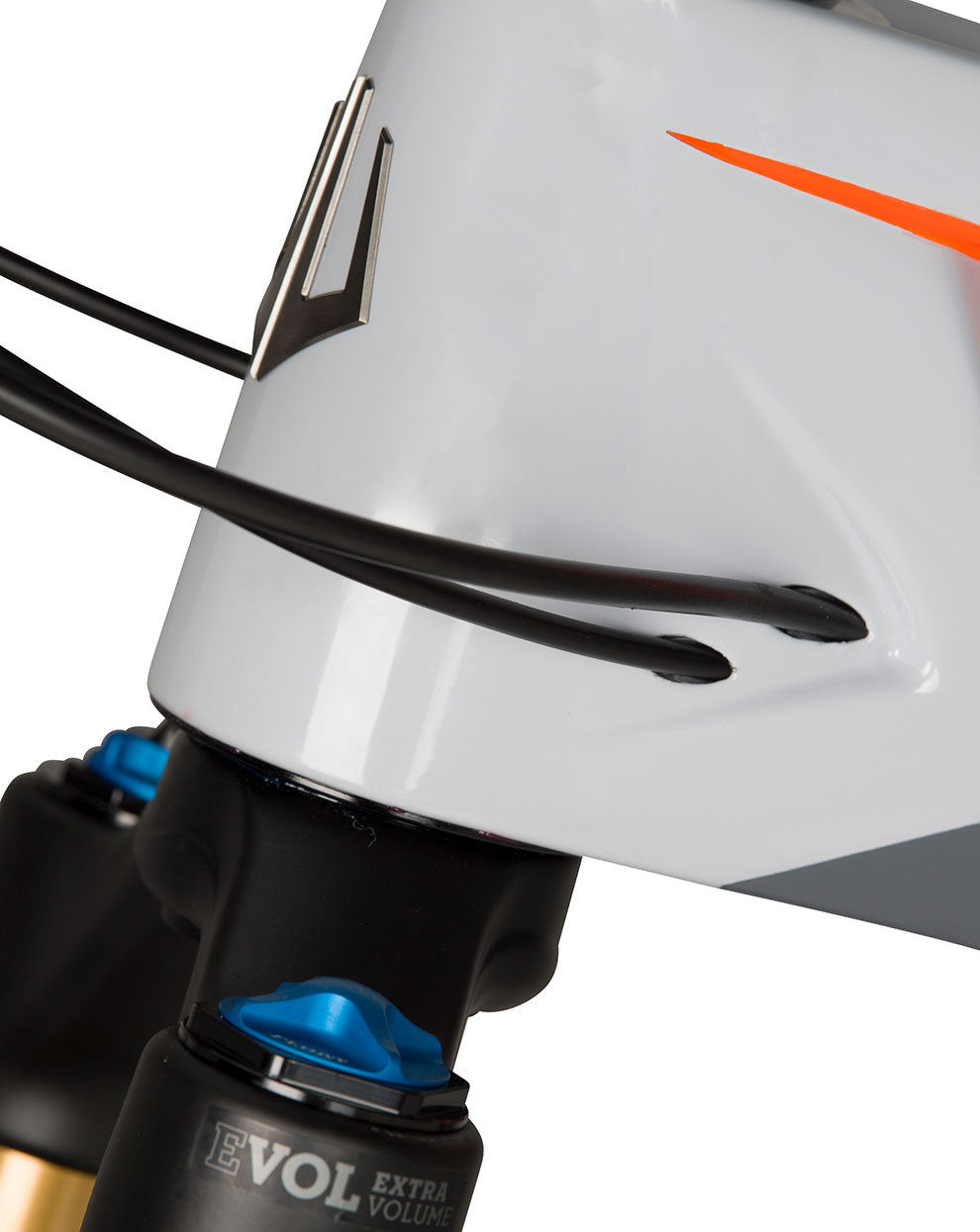

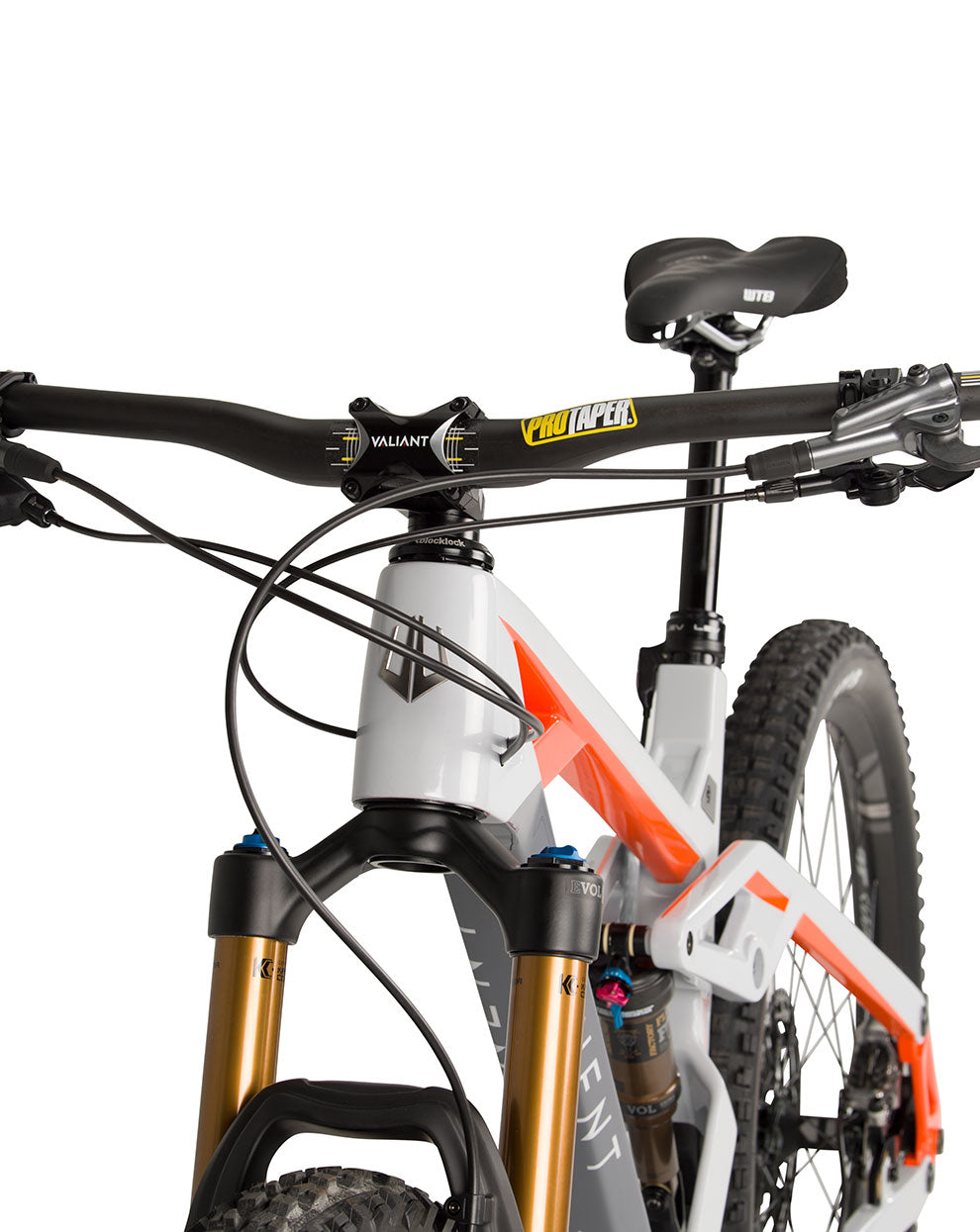

Cable Management
Internal carbon tubes for easy installation of cables and quiet operation while riding.
