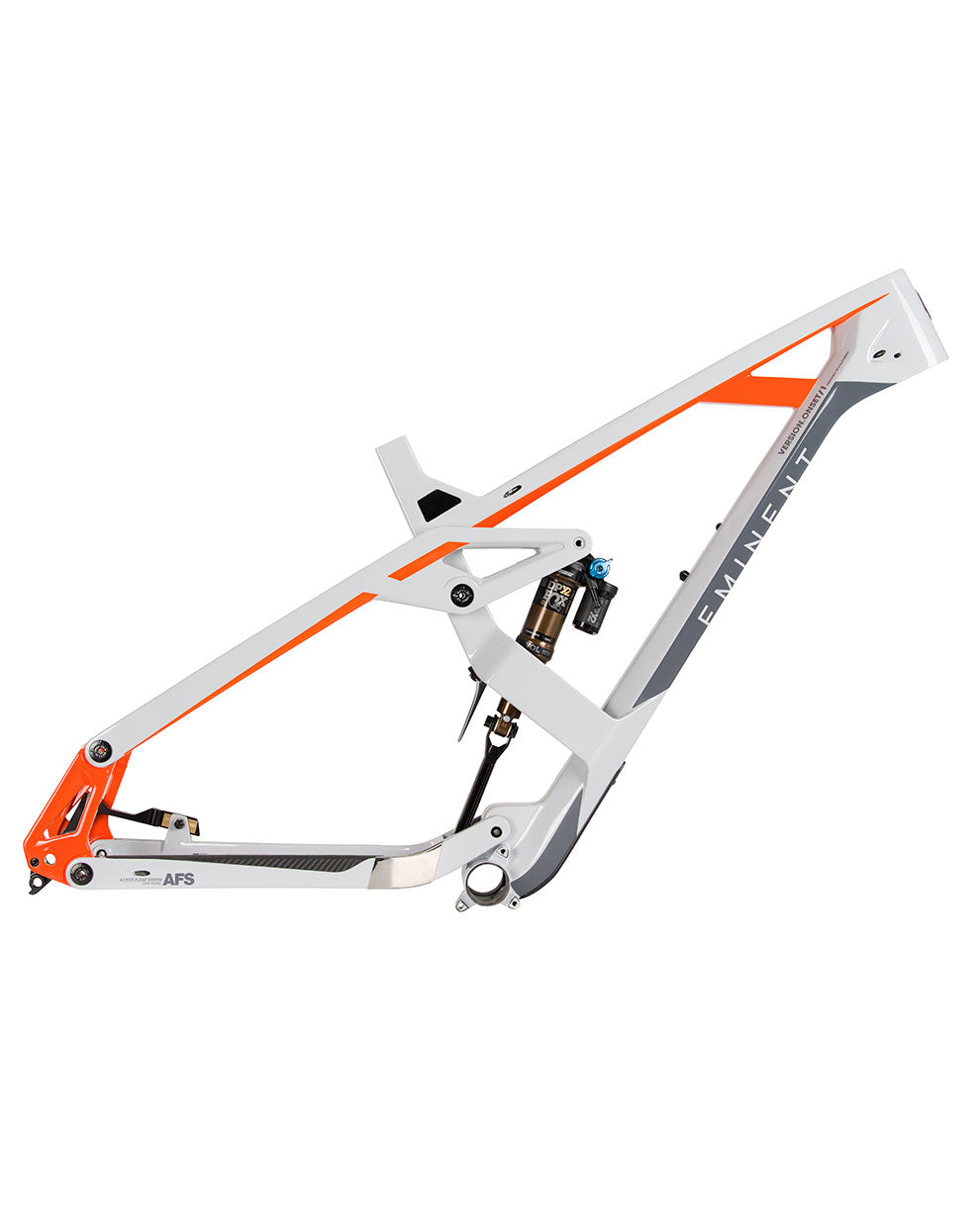

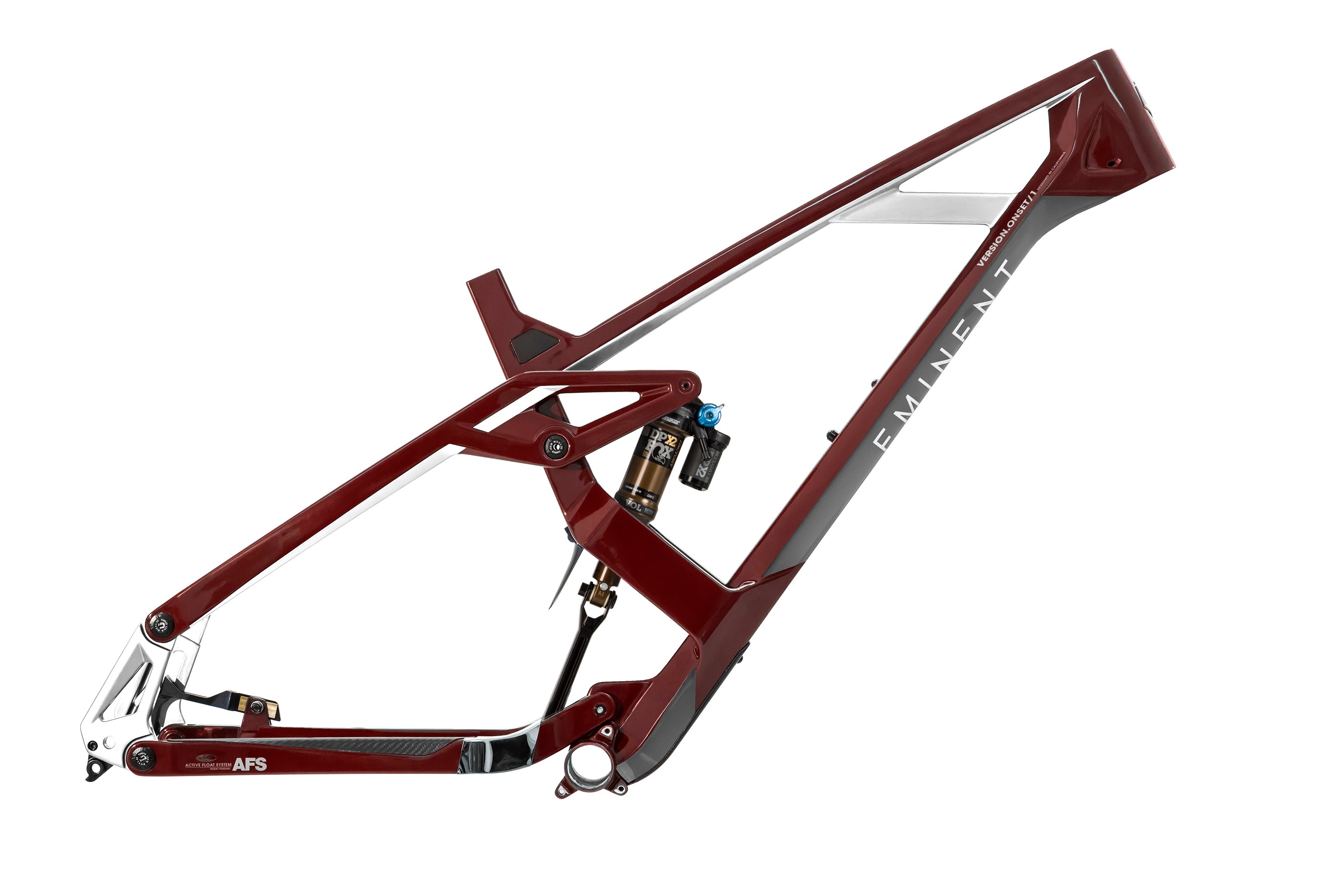

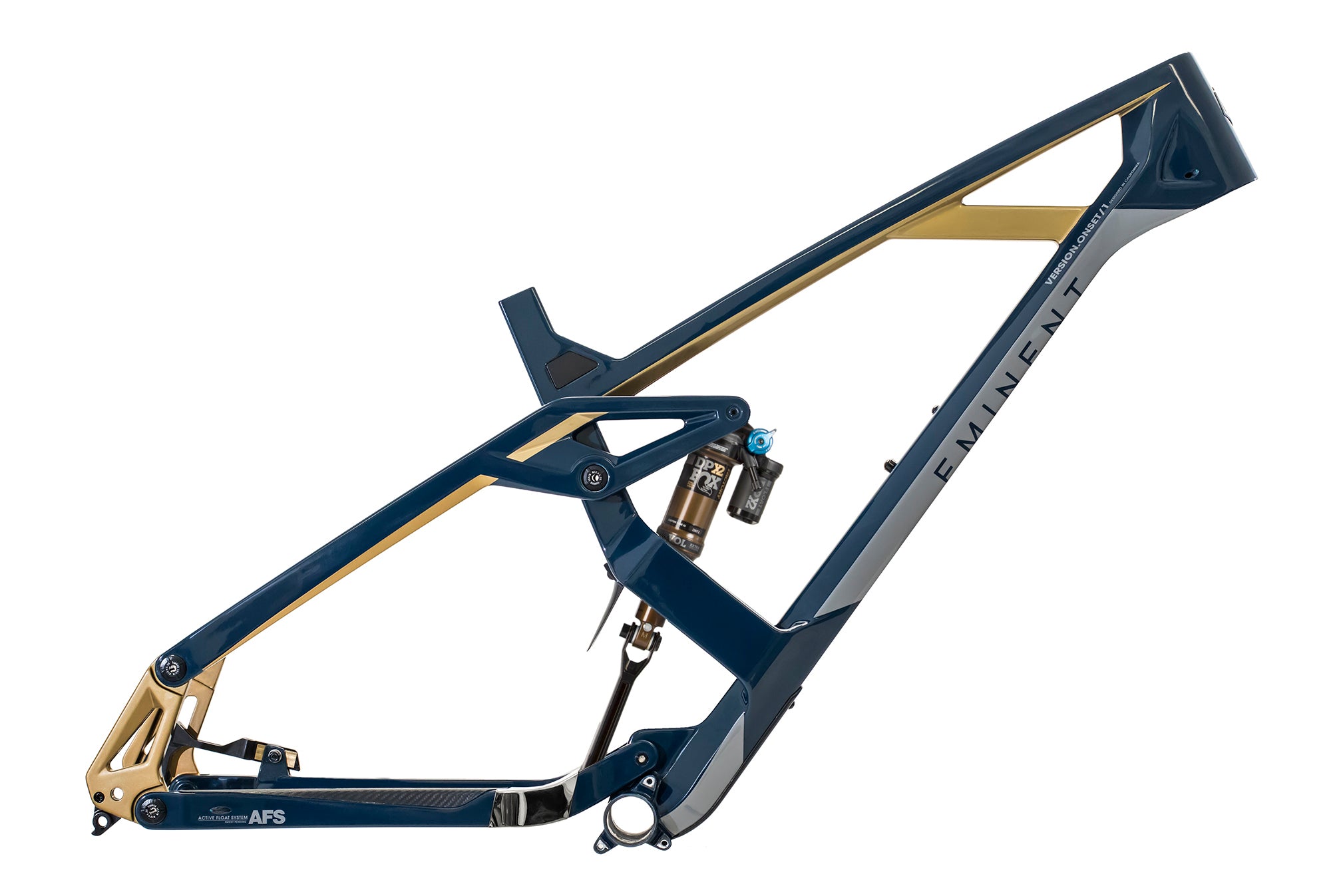

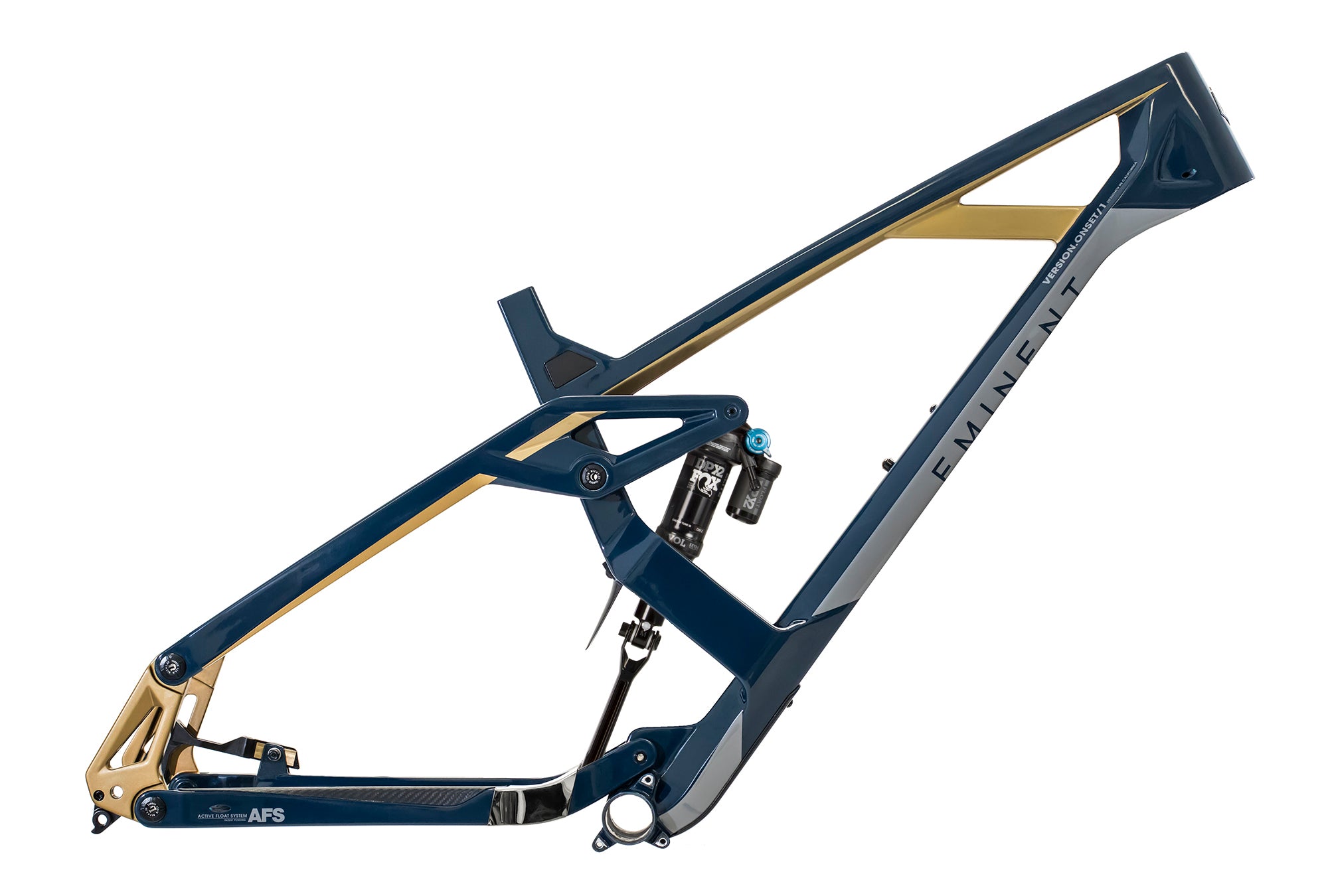

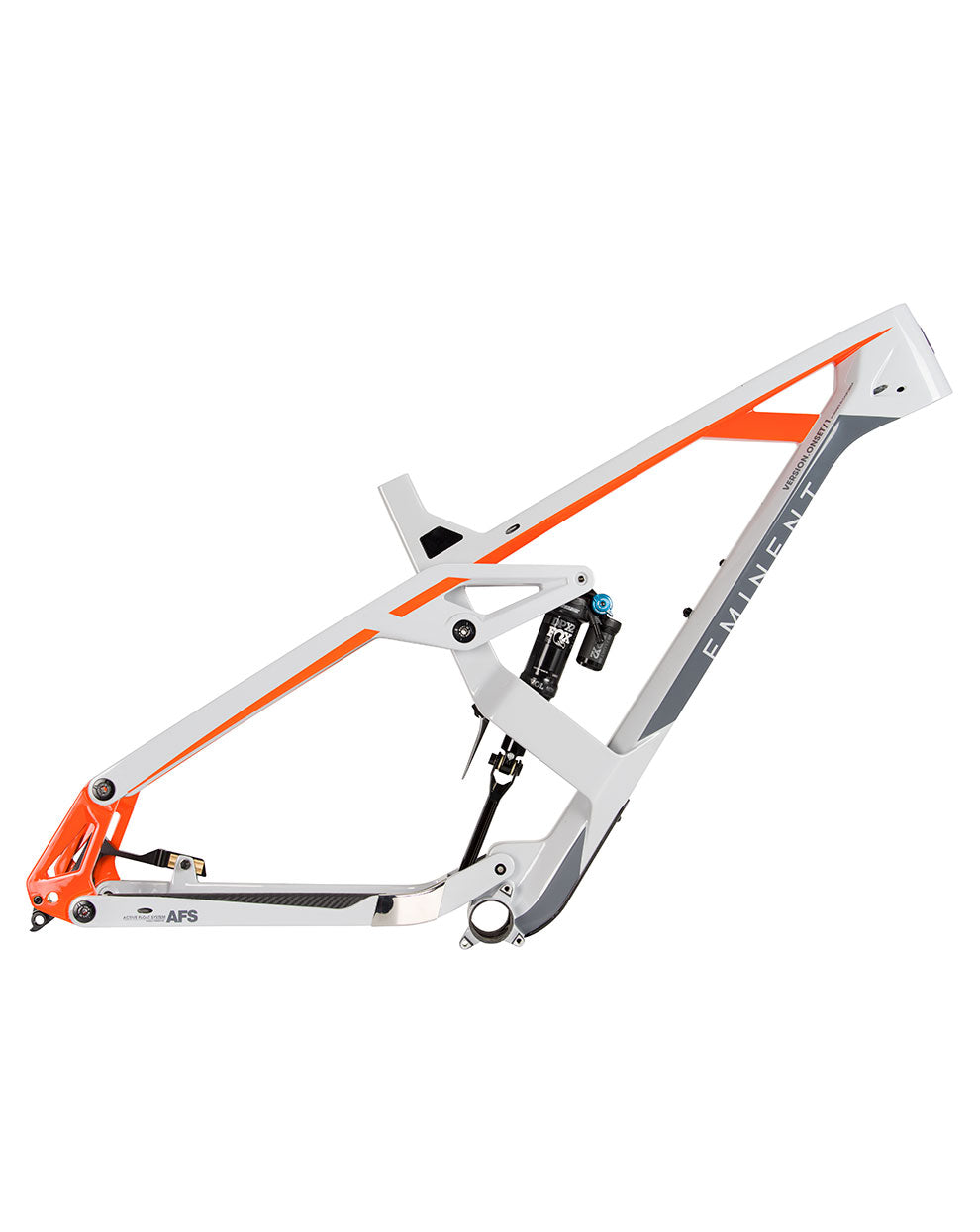

Onset LT 29 Frame

AFS frames provide zero compromise traction in all scenarios: pedalling, decending and brake. Eminent utilizes top shelf unidirectional carbon fiber to ensure the highest strength to weigh ratio. Additionally features include internally guided cable ports, integrated down tube protector, and angular contact bearings throughout to ensure class leading lateral stiffness.

Includes: 210 x 55 Rear Shock, LT Link, Rear Axle, Seat Binder, and Owner's Manual

$2,899.00
STARTING AT $69/MO WITH VARIANT. Payment Calculator.
Frame Color:
gray-orange-gloss
black-gray-satin
Type:
Size:
I agree with terms and conditions
Frame Material Unidirectional Carbon Fiber
BB type Pressfit 92
Headset Type ZS 44/ZS 56 removable
Rear Axle Spacing Boost 148mm
Seat Post Dia 30.9mm
Shock Length 210x55mm
Chain Guide Mounting ISCG05
S M L
A TOP TUBE LENGTH 572MM 601MM 629MM
B REACH 407MM 432MM 460MM
C HEAD TUBE LENGTH 100MM 110MM 120MM
D HEAD TUBE ANGLE 66 66 66
E SEAT TUBE LENGTH 432MM 451MM 471MM
F SEAT TUBE ANGLE 75 75 75
G BOTTOM BRACKET HEIGHT 337MM 337MM 337MM
H STACK 623MM 633MM 642MM
I WHEEL BASE 1158MM 1187MM 1216MM
J CHAIN STAY 442MM 442MM 442MM
K STAND OVER 738MM 738MM 738MM
L FORK AXLE TO CROWN 557MM 557MM 557MM
M FORK OFFSET 44MM 44MM 44MM
Integrated Seat Clamp

Keeps the look tidy and also provides better minimum clearance assurance

Carbon Downtube Protector

Carbon adds structure to ensure big hits don’t damage your frame.

Unidirectional Carbon Fiber

Proprietary blend of carbon to create a bike capable of meeting the rigors of enduro riding.

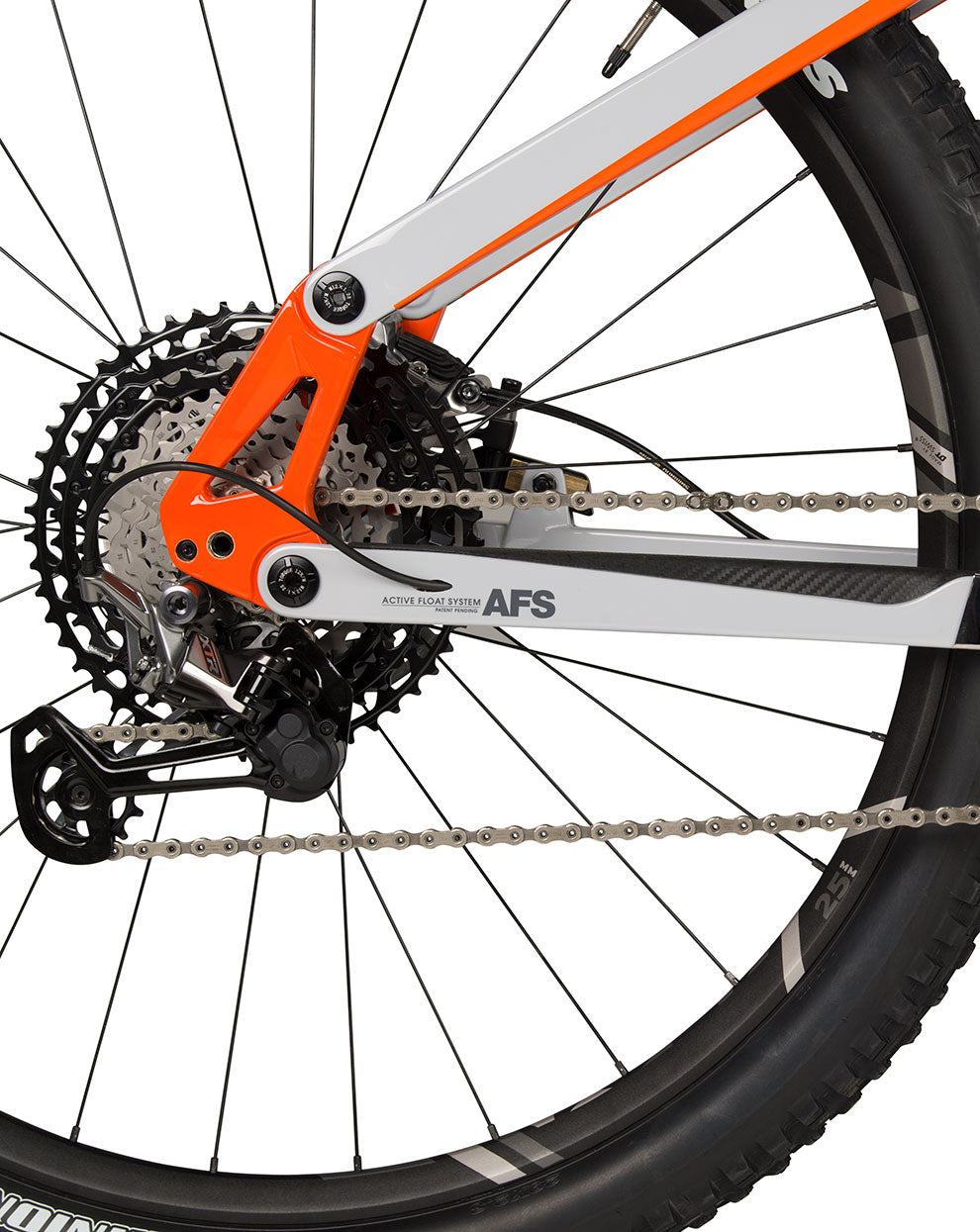

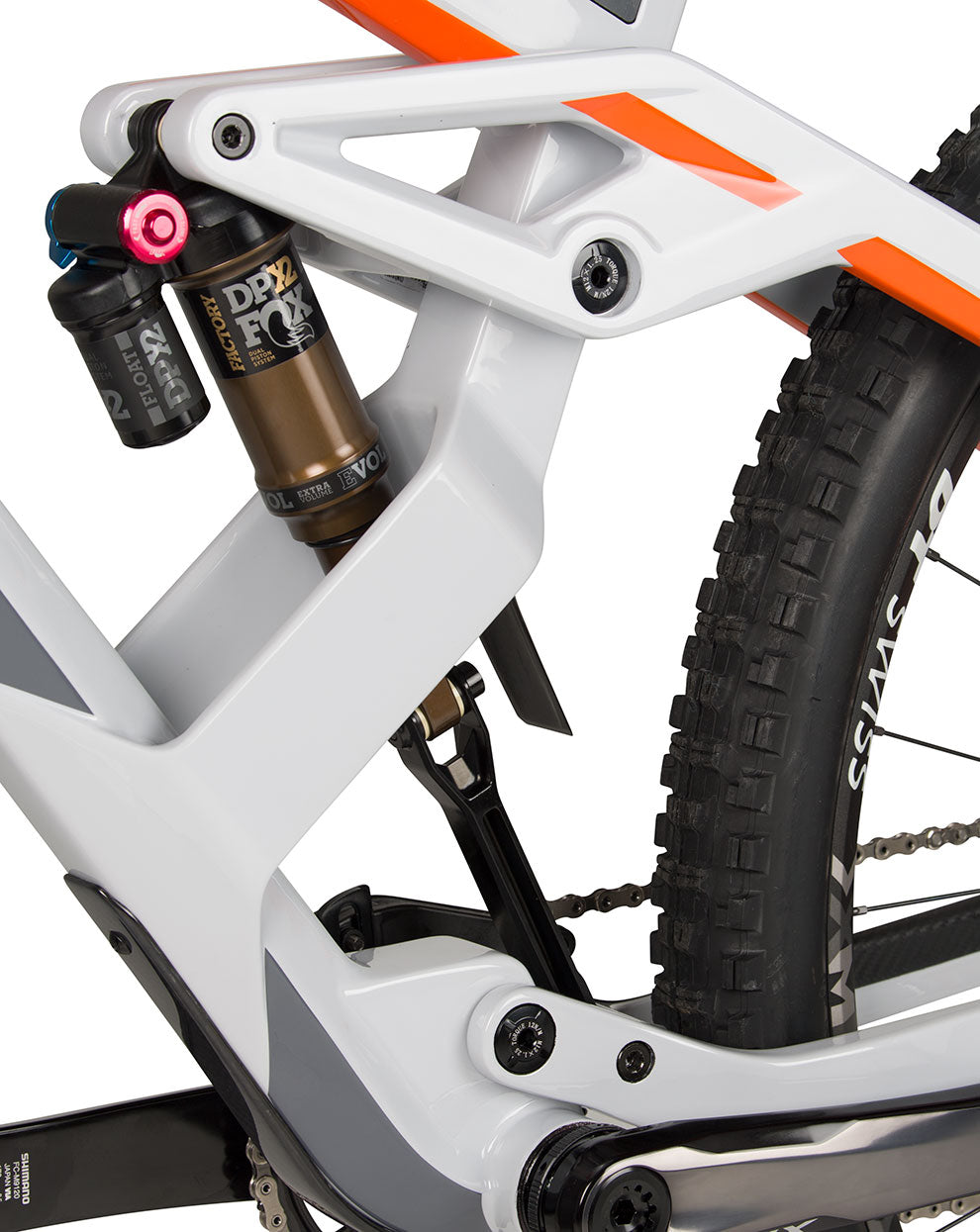

AFS Suspension

Floating brake, floating shock, and long rocker for quick response in all conditions.

Angular Contact Bearings

Bearings capable of side and vertical loading improve lateral stiffness and bearing durability.

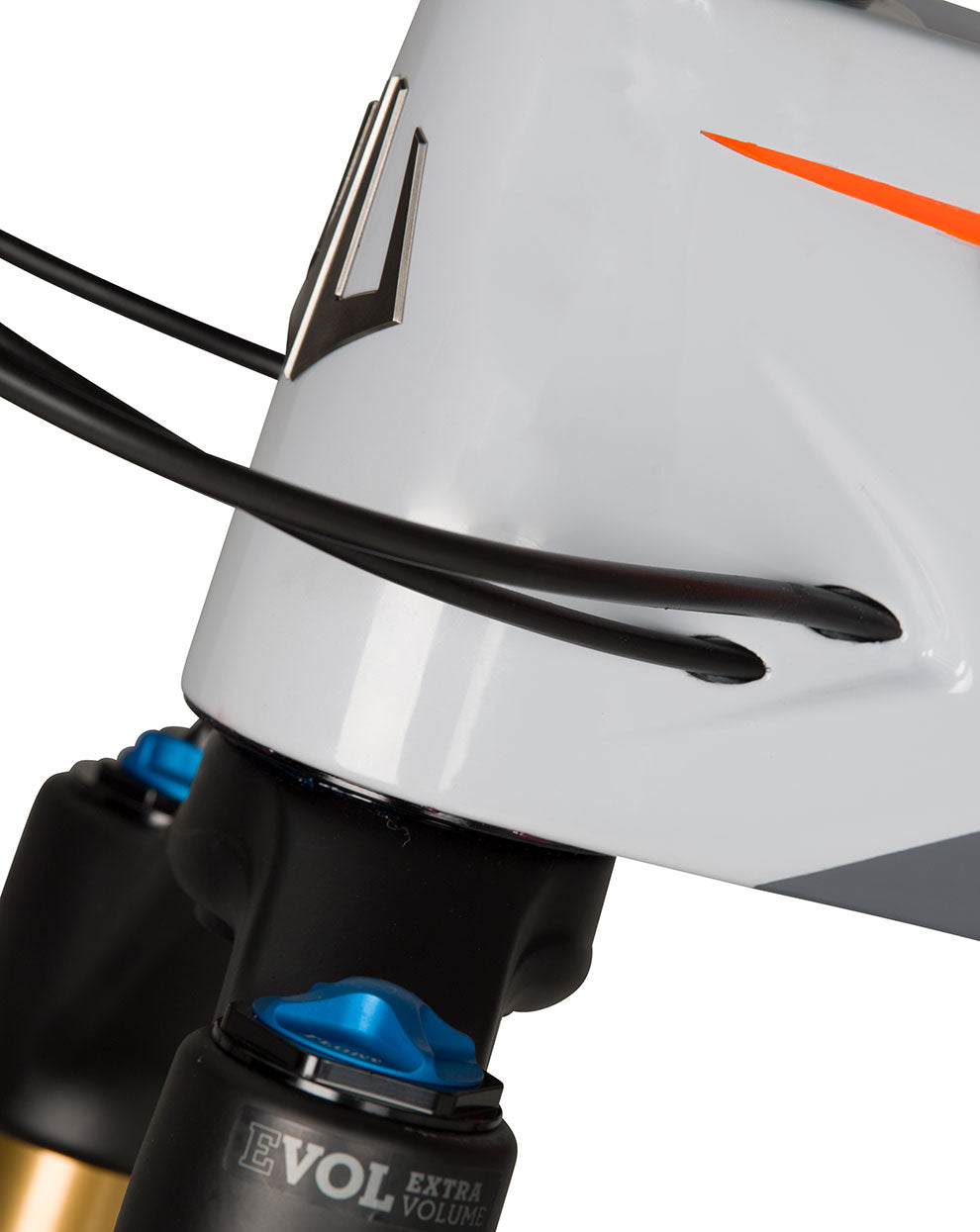

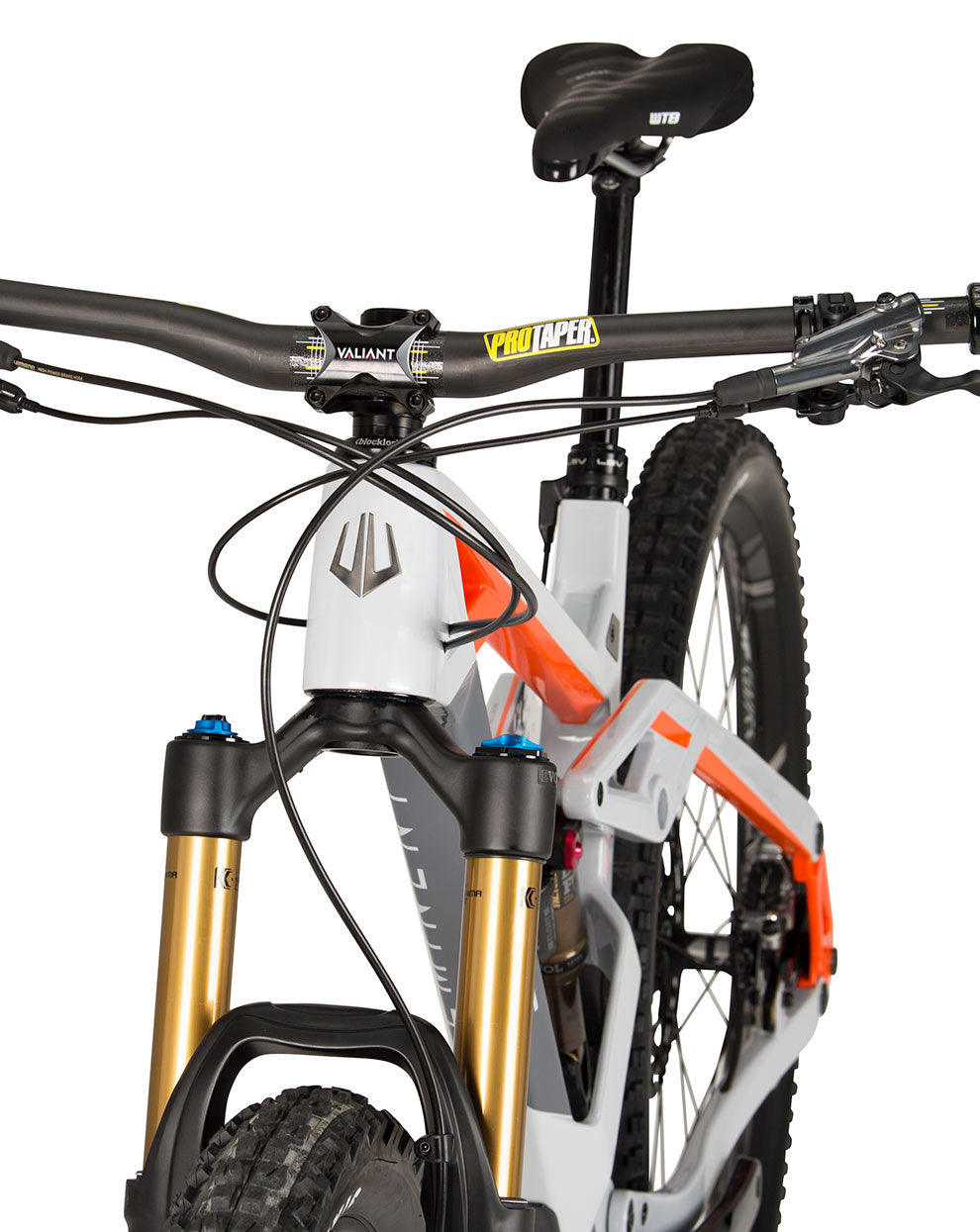

Cable Management

Internal carbon tubes for easy installation of cables and quiet operation while riding.
