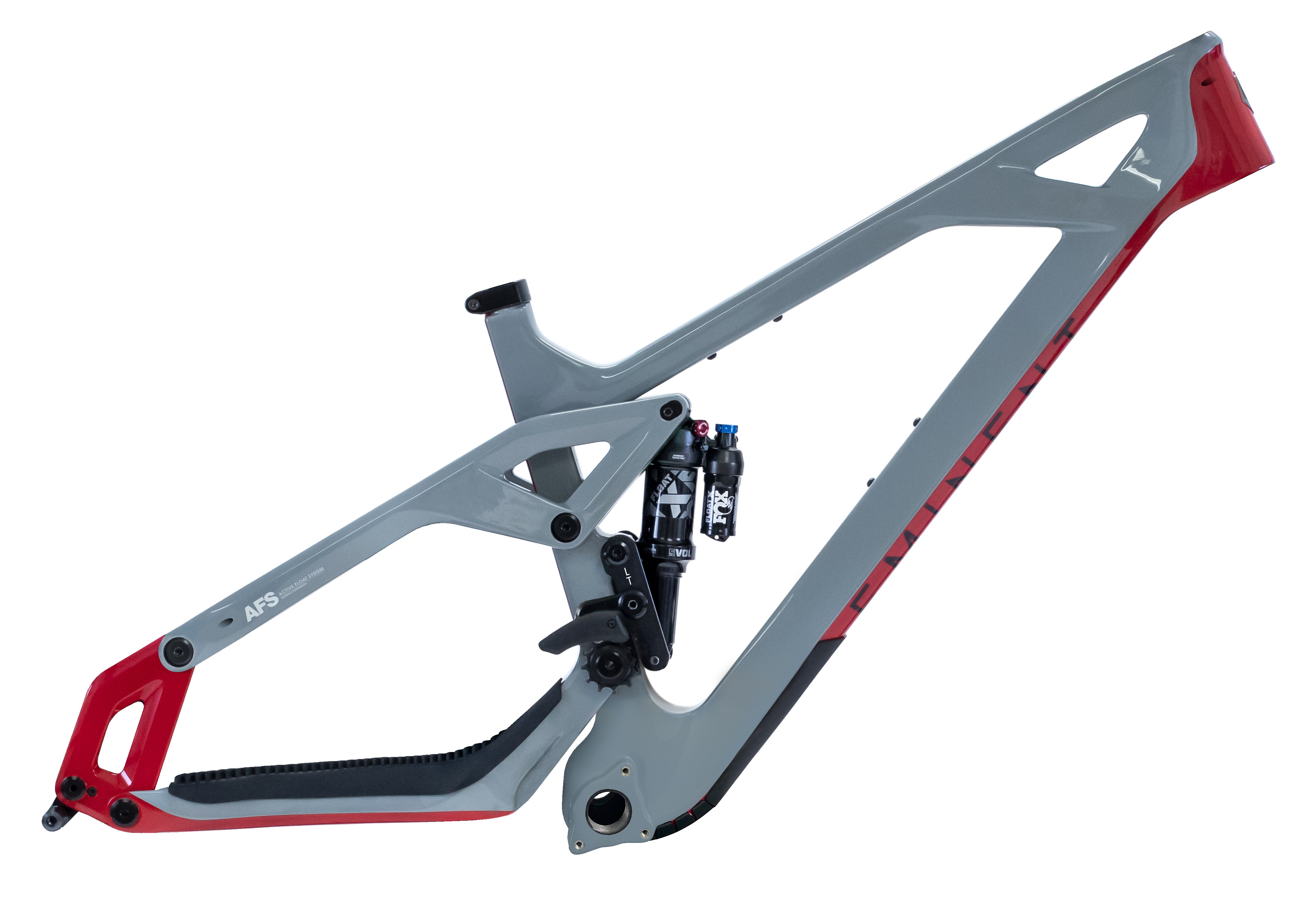

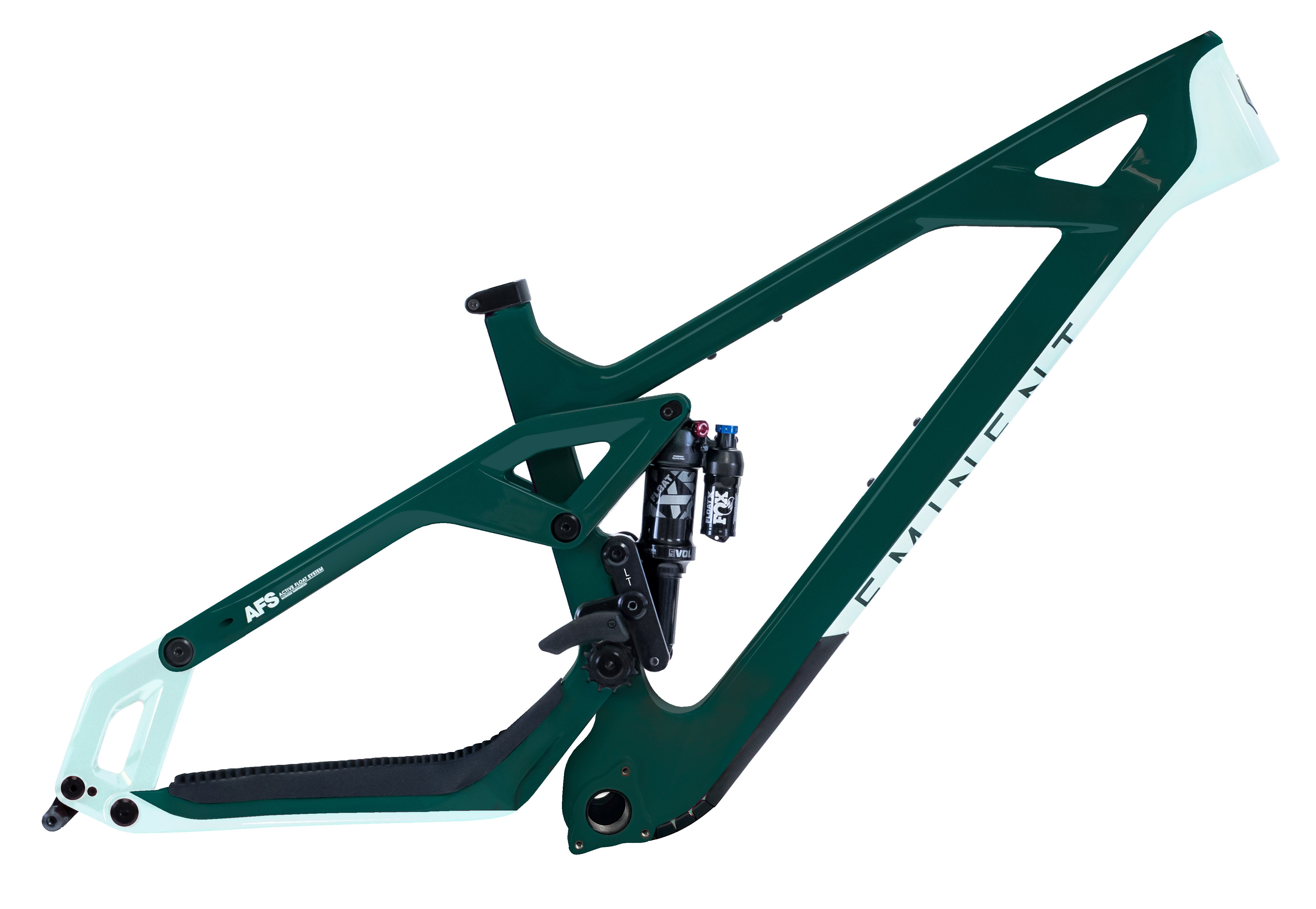

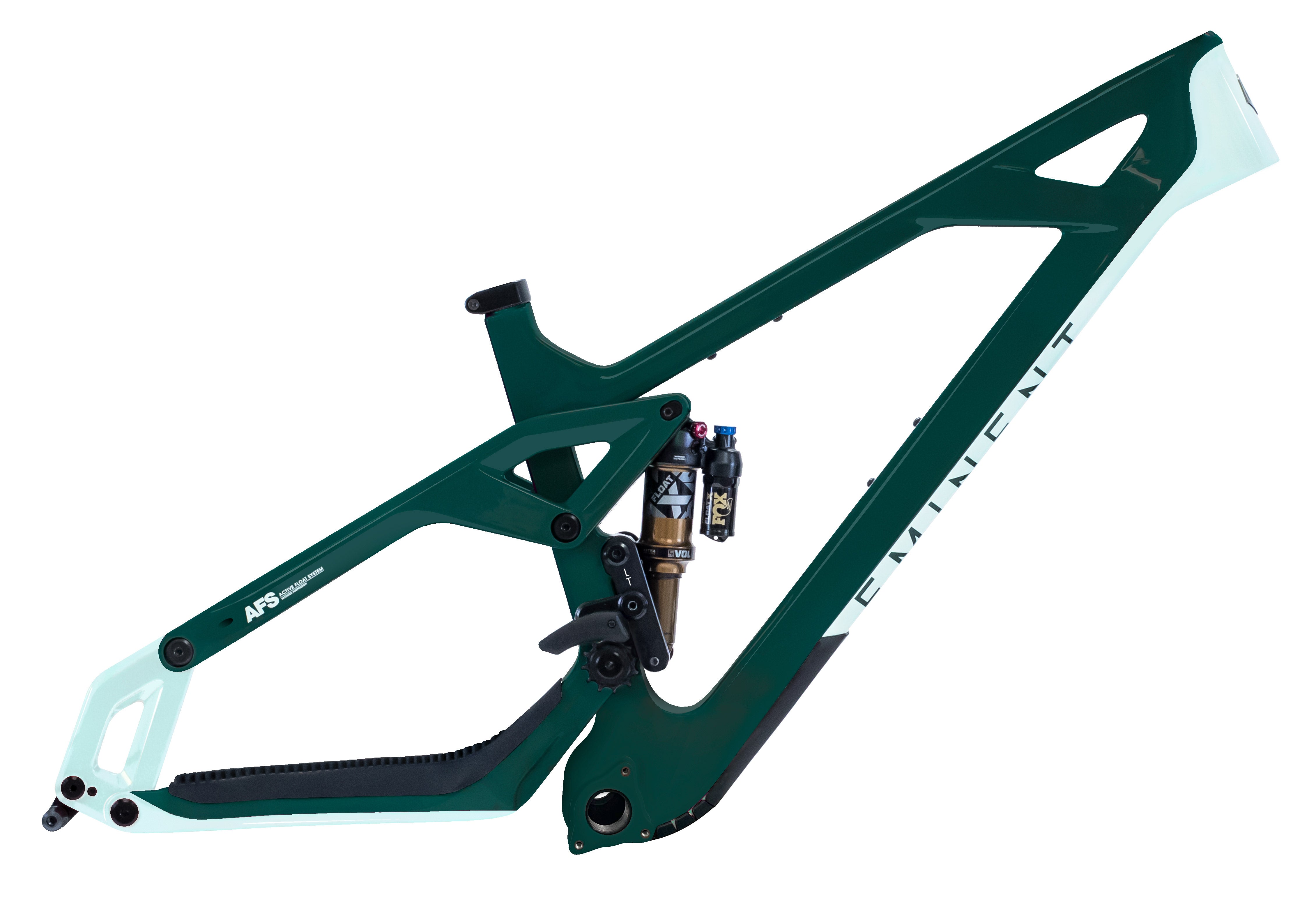

Haste LT 29 Frame

AFS frames provide zero compromise traction in all scenarios: pedalling, decending and brakeing. Eminent utilizes top shelf unidirectional carbon fiber to ensure the highest strength to weigh ratio. Additionally features include internally guided cable ports, rubberized down tube  and chain stay protector, and angular contact bearings throughout to ensure class leading lateral stiffness.

Includes: 210 x 55 Rear Shock, LT Link, Rear Axle, Seat Binder, and Owner's Manual



$3,299.00
STARTING AT $78.47/MO (14.99% APR), CLICK BELOW FOR CALCULATOR AND/OR LOAN APPLICATION TO COMPLETE YOUR FINANCED PURCHASE, OTHERWISE ADD YOUR PRODUCT TO THE CART AND PROCEED TO CHECK OUT. Loan Calculator/Application for Payment.
Frame Color:
forest-mint-gloss
gray-red-gloss
Type:
Size:
I agree with terms and conditions
Frame MaterialUnidirectional Carbon Fiber
Headset TypeZS 44/ZS 56 removable
Rear Axle SpacingSuper Boost 157mm
Seat Post Dia34.9mm
Shock Length210mm x 55mm
Chain Guide MountIntegrated Top Guide
Maximum Tire Clearance2.6"
Rotor Size Compatibility203mm
Bottom Bracket Threaded BSA
Max. Seat Post InsertionM: 288mm, L & XL: 308mm



*Specifications subject to change

  MLXL
ATOP TUBE LENGTH592MM626MM659MM
BREACH460MM490MM520MM
CHEAD TUBE LENGTH110MM123MM136MM
D1HEAD TUBE ANGLE (steep)656565
D2HEAD TUBE ANGLE (slack)64.564.564.5
ESEAT TUBE LENGTH430MM450MM450MM
F1SEAT TUBE ANGLE (steep)787878
F2SEAT TUBE ANGLE (slack)77.577.577.5
G1BOTTOM BRACKET HEIGHT (steep)340MM340MM340MM
G2BOTTOM BRACKET HEIGHT (slack)337MM337MM337MM
HSTACK625MM636MM648MM
IWHEEL BASE1223MM1258MM1294MM
JCHAIN STAY440MM440MM440MM
KSTANDOVER710MM710MM710MM
LFORK AXLE TO CROWN557MM557MM557MM
MFORK OFFSET44MM44MM44MM
Rearward Axle Path for a smoother ride

Progressive leverage ratio for better mid stroke support and bottom out resistance, also enables the use of either an air shock or a coil shock

Un-interrupted seat tube for maximum dropper length usage

Suspension flip chip for slack or more slack setting

Keyed rear axle for improved stiffness and retention

Rubberized frame protection for quiet operation

In frame mounts for storage options
