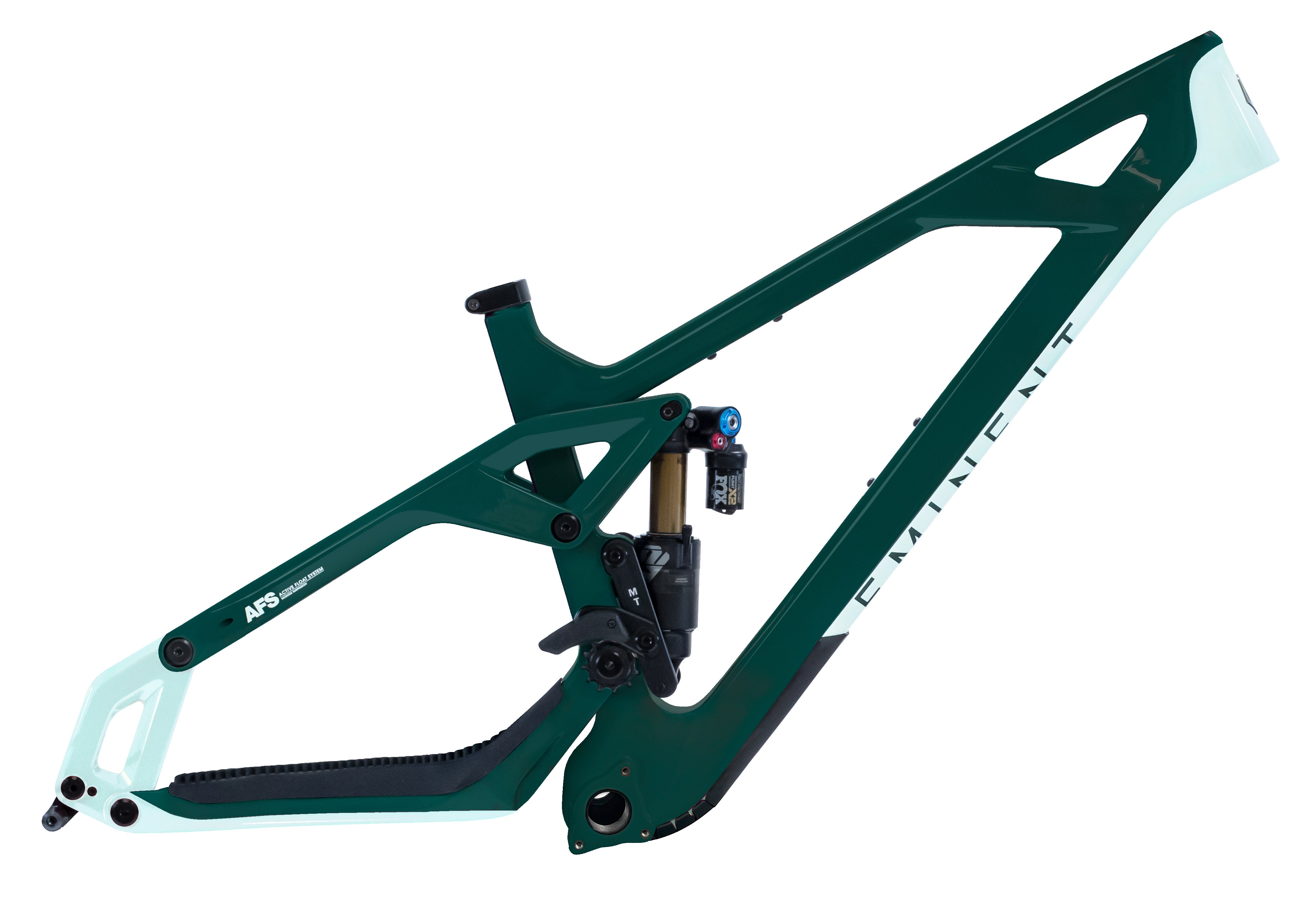

Haste MT 29 Frame

AFS frames provide zero compromise traction in all scenarios: pedalling, decending and braking. Eminent utilizes top shelf unidirectional carbon fiber to ensure the highest strength to weigh ratio. Additionally features include internally guided cable ports, rubberized down tube  and chain stay protector, and angular contact bearings throughout to ensure class leading lateral stiffness.

Includes: 230 x 60 Rear Shock, MT Link, Rear Axle, Seat Binder, and Owner's Manual



$3,799.00 $2,159.40
STARTING AT $78.47/MO (14.99% APR), CLICK BELOW FOR CALCULATOR AND/OR LOAN APPLICATION TO COMPLETE YOUR FINANCED PURCHASE, OTHERWISE ADD YOUR PRODUCT TO THE CART AND PROCEED TO CHECK OUT. Loan Calculator/Application for Payment.
Frame Color:
forest-mint-gloss

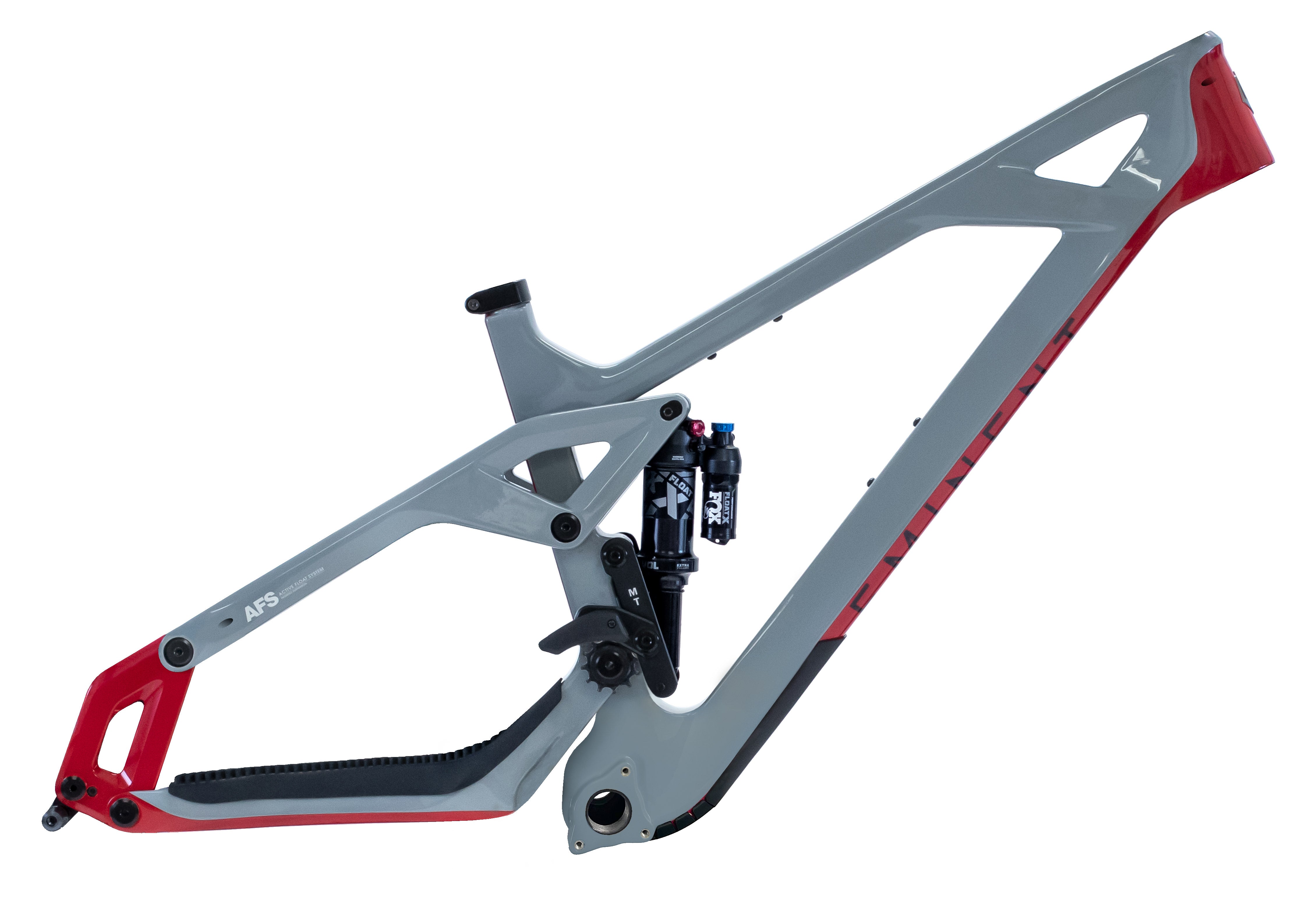

gray-red-gloss
Type:
Size:
I agree with terms and conditions
Frame MaterialUnidirectional Carbon Fiber
Headset TypeZS 44/ZS 56 removable
Rear Axle SpacingSuper Boost 157mm
Seat Post Dia34.9mm
Shock Length230mm x 60mm
Chain Guide MountIntegrated Top Guide
Maximum Tire Clearance2.6"
Rotor Size Compatibility203mm
Bottom Bracket Threaded BSA
Max. Seat Post InsertionM: 288mm, L & XL: 308mm



*Specifications subject to change

  MLXL
ATOP TUBE LENGTH595MM629MM662MM
BREACH451MM481MM511MM
CHEAD TUBE LENGTH113MM123MM136MM
D1HEAD TUBE ANGLE (steep)646464
D2HEAD TUBE ANGLE (slack)63.563.563.5
ESEAT TUBE LENGTH430MM450MM450MM
F1SEAT TUBE ANGLE (steep)777777
F2SEAT TUBE ANGLE (slack)76.576.576.5
G1BOTTOM BRACKET HEIGHT (steep)347MM347MM347MM
G2BOTTOM BRACKET HEIGHT (slack)344MM344MM344MM
HSTACK631MM643MM655MM
IWHEEL BASE1232MM1268MM1303MM
JCHAIN STAY440MM440MM440MM
KSTANDOVER717MM717MM717MM
LFORK AXLE TO CROWN577MM577MM577MM
MFORK OFFSET44MM44MM44MM
Rearward Axle Path for a smoother ride

Progressive leverage ratio for better mid stroke support and bottom out resistance, also enables the use of either an air shock or a coil shock

Un-interrupted seat tube for maximum dropper length usage

Suspension flip chip for slack or more slack setting

Keyed rear axle for improved stiffness and retention

Rubberized frame protection for quiet operation

In frame mounts for storage options
