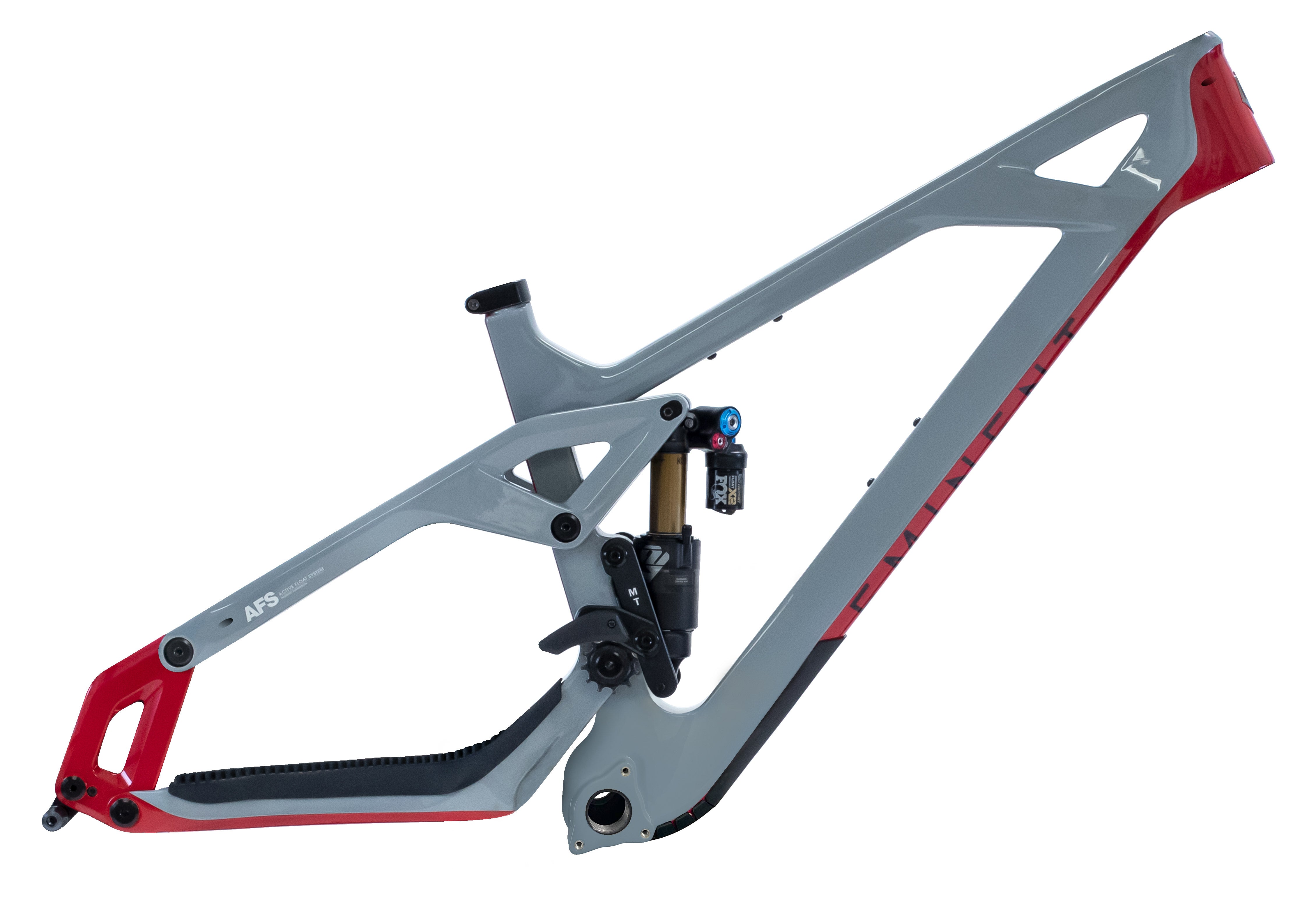

Onset ST 29 Frame

AFS frames provide zero compromise traction in all scenarios: pedalling, decending and brake. Eminent utilizes top shelf unidirectional carbon fiber to ensure the highest strength to weigh ratio. Additionally features include internally guided cable ports, integrated down tube protector, and angular contact bearings throughout to ensure class leading lateral stiffness.

Includes: 190 x 45 Fox Rear Shock, Fox Fork, ST Link, Rear Axle, Seat Binder, and Owner's Manual

$3,699.00 $1,599.00
STARTING AT $76.09/MO (14.99% APR), CLICK BELOW FOR CALCULATOR AND/OR LOAN APPLICATION TO COMPLETE YOUR FINANCED PURCHASE, OTHERWISE ADD YOUR PRODUCT TO THE CART AND PROCEED TO CHECK OUT. Loan Calculator/Application for Payment.
Frame Color:
burgundy-silver-gloss
gray-orange-gloss
Type:
Size:

I agree with terms and conditions
Frame Material Unidirectional Carbon Fiber
BB type Pressfit 92
Headset Type ZS 44/ZS 56 removable
Rear Axle Spacing Boost 148mm
Seat Post Dia 30.9mm
Shock Length 190x45mm
Chain Guide Mounting ISCG05

*Specifications subject to change

S M L XL
A TOP TUBE LENGTH 568MM 597MM 627MM 650MM
B REACH 416MM 441MM 467MM 500mm
C HEAD TUBE LENGTH 100MM 110MM 120MM 130MM
D HEAD TUBE ANGLE 66.8 66.8 66.8 66.8
E SEAT TUBE LENGTH 432MM 451MM 471MM 471MM
F SEAT TUBE ANGLE 76 76 76 77
G BOTTOM BRACKET HEIGHT 330MM 330MM 330MM 330MM
H STACK 617MM 626MM 635MM 644MM
I WHEEL BASE 1150MM 1179MM 1209MM 1246MM
J CHAIN STAY 442MM 442MM 442MM 442MM
K STAND OVER 731MM 731MM 731MM 731MM
L FORK AXLE TO CROWN 537MM 537MM 537MM 537MM
M FORK OFFSET 44MM 44MM 44MM 44MM
Integrated Seat Clamp

Keeps the look tidy and also provides better minimum clearance assurance

Carbon Downtube Protector

Carbon adds structure to ensure big hits don’t damage your frame.

Unidirectional Carbon Fiber

Proprietary blend of carbon to create a bike capable of meeting the rigors of enduro riding.

AFS Suspension

Floating brake, floating shock, and long rocker for quick response in all conditions.

Angular Contact Bearings

Bearings capable of side and vertical loading improve lateral stiffness and bearing durability.

Cable Management

Internal carbon tubes for easy installation of cables and quiet operation while riding.
